Siretta ECHO2/0.2M/uFL/S/S/1 PCB Multiband Antenna with UFL Connector, 2G (GSM/GPRS), 3G (UTMS), 4G (LTE), WiFi, Антенна

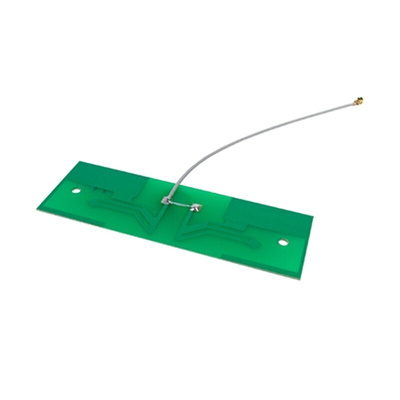

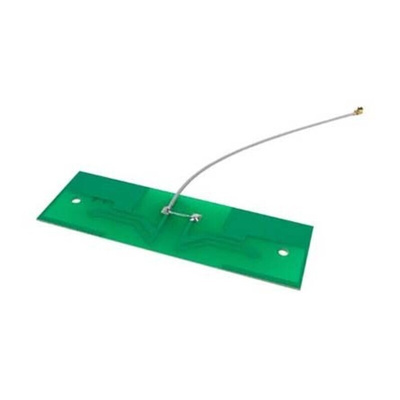

ECHO 2 2.4 GHz GSM/GPRS/3G/4G PCB Antenna, Siretta

The ECHO 2 PCB Antenna from Siretta provides you with a quad band, GSM, GPRS, 3G and 4G solution for your designs.

Features & Benefits of the ECHO 2 PCB Antenna
•GSM/GPRS 850, 900, 1.8, 1.9 MHz
•3G 1.9, 2.1 MHz
•4G 900, 1.8 MHz
•ISM 868, 2.4 MHz
•Ground plane independent
•Various cable and connector options
•-40°C to +85°C operating temperature range
•50 ohm impedance
•2 dBi peak gain
•Vertical polarisation
• wave dipole radiating element
•Dimensions: 75 x 25 x 1 mm

The Echo 2 is a T-bar dipole PCB antenna, tune to quad band GSM/GPRS, 3G and WiFi frequencies. Measuring 75 x 25 x 1.7mm and has a peak gain of 2dBi. The Echo2 antenna is perfect for applications that require a sensitive compact embedded antenna solution. Already proven in many applications where space is at a premium, this antenna is ideal as it is ground plane independent and compact making it a popular choice where a small size combined with efficient performance is critical. Many small PCB antennas are a half dipole and where they really need a ground plane to be really effective.

Compact size
full dipole - ground plane independent antenna
