Siretta MIKE2A/3M/LL1/SMAM/S/S/26 Whip Multiband Antenna with SMA Connector, 2G (GSM/GPRS), 3G (UTMS), 4G, 4G (LTE, Антенна

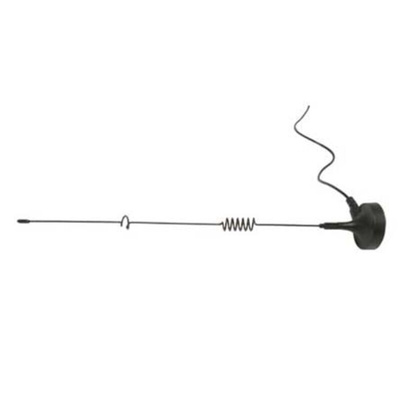

MIKE 2A Quad Band Mag Mount Whip Antennas, Siretta

The range of MIKE 2A mag mount whip antennas are perfect for getting a strong signal — particularly in areas that are notorious for low reception. The MIKE 2A range are also quad band antennas, covering GSM/GPRS, 3G and ISM. Suggested applications include utilities metering, car park metering, security and wireless door entry.

Features & Benefits of the MIKE 2A Antennas
•A variety of cable/connector options
•-45° C to +75° C operating temperature range
•50 ohm impedance
•5 dBi peak gain
•Vertical polarization
• wave whip antenna radiating element
•850, 900, 1800, 1900 MHz GSM/GPRS
•2.1 GHz 3G
•868 MHz ISM
•311 mm height

The Mike 2A is a wave, high gain mag mount whip antenna, tuned to quad band GSM/GPRS and 3G/UMTS frequencies. With a high peak gain of 5dBi, the Mike 2A is a great antenna for demanding applications that require strong signal transmission/reception capability. Its magnetic base provides a versatile method of mounting, allowing the user to manoeuvre the antenna to best optimise signal strength. Mag mount antennas are ideal for quick and easy installations that can be adjusted at a later date.

High gain - 5dBi
Low loss cable variants

Mobile Communication Antenna (GSM/GPRS/2G/3G/4G), Siretta

Datasheet
