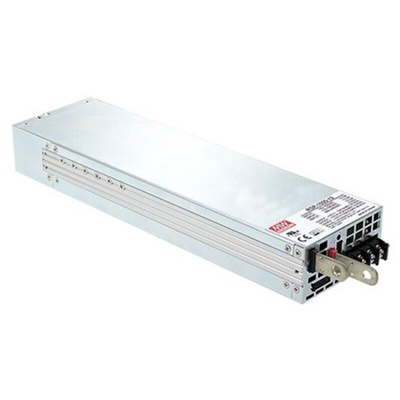

MEAN WELL Switching Power Supply, RSP-1600-12, 12V dc, 125A, 1.5kW, 1 Output, 127 → 370 V dc, 90 → 264 V, Источник питания

Mean Well Switch Mode Power Supply

The Mean Well RSP-1600 series 1500W single output AC to DC embedded switch mode power supply has an output current rating of 125A at 12VDC. It has a universal input supply voltage rating from 90VAC to 264VAC and 120VDC to 370VDC.

Features and Benefits

Built-in active PFC function
high-efficiency up to 89%
Forced air cooling by built-in DC fan
Output voltage and constant current level programmable
Active current sharing up to 9600W
Built-in remote ON-OFF control
Remote sense
Auxiliary power
DC OK signal
OTP alarm signal
Optional PMBus protocol
Operating temperature ranging between -30°C and 70°C

Applications

Factory control or automation apparatus
Test and measurement instrument
Laser related machine
Digital broadcasting
Constant current source
Redundant system

Certifications

EN55022 (CISPR22) / EN55011 (CISPR11)
EN55022 (CISPR22) / EN55011 (CISPR11)
EN61000-3-2
EN61000-3-3
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN61000-4-11

Datasheet
