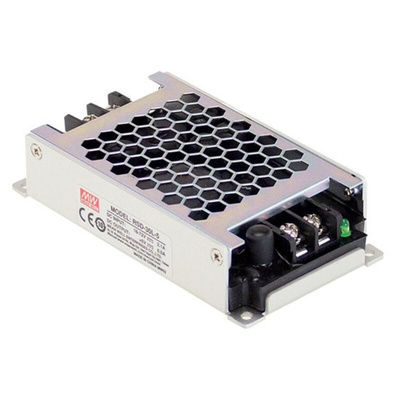

RSD-30L-24, MEAN WELL RSD-30 DC-DC Converter, 24V dc/ 1.25A Output, 18 → 72 V dc Input, 30W, Chassis Mount, +70°C Max Temp, Преобразователь

Mean Well (RSD-30 Series) Single Output Module DC-DC Converter

The Mean Well RSD-30 Series brings reliability alongside great affordability. This series of DC-DC Converter is highly compliant with industrial standards such as EN50155 & IEC60571 (Railway Standard, making it extremely suitable for all kinds of transportation systems that use frequently used input voltages such as 12V, 24V, 36V and further).

This series is robust enough to work under temperatures of -40 to +70℃, has low ripple and noise & a low enclosure profile of just 25mm making it suitable and versatile in space-critical industrial applications such as board-level power distribution and much more.

(Series) Features & Benefits:

• LED indicator for power on
• No minimum load required
• I/O isolated
• Built-in constant current limiting circuit
• Half encapsulated, cooling by free air convection
• 3 years manufacturer warranty for RSD series, 2 Years warranty for SD series.
• 1U low profile (expect for SD-150∼500)
• -40∼ +70°C wide operating temperature

(Series) Output specifications:

• Single output voltage from 5V to 48V available
• 4000VDC I/O isolation
• 15∼1000W complete Wattage for choice

(Series) Input specifications:

• 9 ∼ 36VDC voltage range continuous
• 2:1/4:1 wide input range

(Series) Compliance & Protection:

• Compliance to EN55015/EN45542-2 railway standard (RSD-30∼300)
• Overload protection 105∼135% rated output power
• Shut down o/p voltage, re-power on to recover

(RSD-30L-24) Features & Benefits:

• 24 VDC Output Voltage
• 1.25A Output Current
• 27.6 ∼ 32.4V Over-Voltage protection
• 120ms setup/rise time, 85ms at full load
• Chassis mounted, fully enclosed

RSD-30L-24 Datasheet
