262165 M22-K01D, Eaton RMQ Titan M22 Series Contact Block for Use with M22, 500V, 1NC, Контактный блок

Eaton Front Fixing Contact Blocks - M22 Series

Introducing the M22 range of contact blocks by Eaton. The M22 range of products consists of high quality, high performing and durable contact blocks that are a necessary part of a user's day to day operations in any automation and control environment. A contact block provides consistency to operations, machinery and overall performance. Eaton's contact blocks have been created and designed to be used for a multitude of different applications such as push buttons, pilot lights and signal controllers. Some examples of where they may commonly be found functioning are within the service sectors and energy distribution panels. This 22mm range of contact blocks from Eaton include the fixing collar which allows for quick assembly of panel mount indicators and control components.

Features & Benefits

• Front fixing, front mounting contact block
• The block forms part of the M22 Series
• Suitable to use with M22 Series modular push buttons and switches
• Quick, simple and easy to install
• These contact blocks have an IP rating of IP20, this means that they are protected against solid objects up to 12mm, but there is no protection against liquids
• Heavy-duty construction
• Features a notched hole mounting with anti-rotation tab
• Each contact block has a width of 1.8 In and 22.5 mm in size
• Compliant to: CE Marked, Bureau Veritas and GoST-R

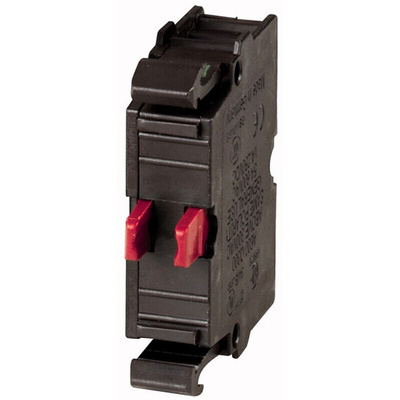

Eaton RMQ Titan Contact Block, 6A, 550V - RMQ-Titan / M22 Series - 262165 M22-K01D

Help manage your power supply safely and efficiently with this contact block from Eaton. It makes or breaks an electrical connection and is used for controlling the function of pushbutton switches from Eaton's M22 range. A fixing collar allows for the quick and easy assembly of panel-mounted buttons. The unit's sturdy screw terminal connectors hold conductors securely in place without causing damage to sensitive wiring, for improved electrical dependability. This type of component is commonly used in industrial automation and control environments.

• Wide operating temperature range of -25°C to +70°C for use in demanding industrial environments
• IP20 (ingress protection) rating indicates it's protected against objects larger than 12mm and is touch-proof, for improved electrical safety
• Electrical lifespan of 1,000,000 operations for reliable, long-lasting performance
• Impulse withstand voltage of 6000V AC for protection against momentarily abnormal voltage

What type of conductors does this contact block accept?

This contact block is compatible with solid, stranded and flexible conductors with ferrules, making it a versatile choice for use in a variety of applications.

Note

Eaton formerly known as Moeller
