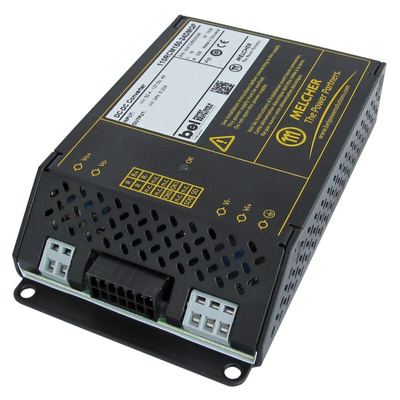

110RCM500-24DMQF, BEL POWER SOLUTIONS INC RCM500 500W Isolated DC-DC Converter Chassis Mount, Voltage in 77 → 137.5 V dc, Voltage, Преобразователь

Rugged Melcher™ Cassettes style converters, with their one to three fully-isolated and regulated outputs, are well-suited for applications from rail, communications and industrial where tough, reliable power is paramount.

The RCM500 and RCM1000 Series converters are reliable power supplies for railway and transportation systems. They are optimized for 110 V railway batteries. The output delivers 24 V with 500 or 1000 W. The converters are designed for chassis mounting and exhibit a closed housing with cooling slots. Many options are available, such as an output ORing FET for redundant operation, output voltage adjustment, interruption time of 10 ms (class ST2), shutdown input, and a monitoring relay (change-over contact).

RoHS lead-free-solder product
Optimized for 72 V or 110 V railway batteries
Output voltage 24 V
Closed housing for chassis mounting
Extremely high efficiency and high power density
Low inrush current
3 connectors: Input, output, auxiliary (option)
Overtemperature, overvoltage, overcurrent, and overload
protection
Many options available
Compliant to EN 50155, EN 50121-3-2
Fire and smoke: compliant to EN 45545 and NFPA 130.

Datasheet
