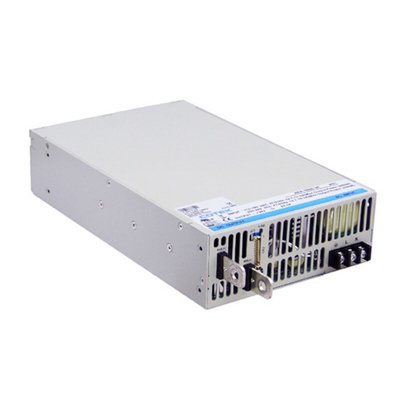

AEK-3000-15, COTEK, 2.4kW Encapsulated Switch Mode Power Supply, 15V dc, Enclosed, Источник питания

COTEK Embedded Switch Mode Power Supply

The COTEK AE-3000 series 2400W single output AC to DC embedded switch mode power supply has an output current of 160A at 15VDC. It has a universal input supply voltage rating ranging from 90VAC to 264VAC/ 127VDC to 370VDC.

Features and Benefits

Global control via RS232
Remote setting multiple PSU via RS232, RS485 and I2C
Programmable output voltage rating ranging from 0% to 105%
Programmable output current ranges from 0% to 105%
Remote ON/OFF
Forced current sharing at parallel operation
Constant current limit
Protects from OVP, OLP, OTP, SCP and fan failure
Chassis mount
Enclosed package type
Operating temperature ranges between -25°C and 60°C

Applications

Factory automation
Off-site test and measurement
Communications equipment

Certifications

UL 60950-1
EN 60350-1
EN 55022
EN 61204-3
EN 6100-6-3
EN 6100-3-2
EN 6100-6-3
EN 55024
EN 61204-3
EN 6100-6-3

Datasheet
