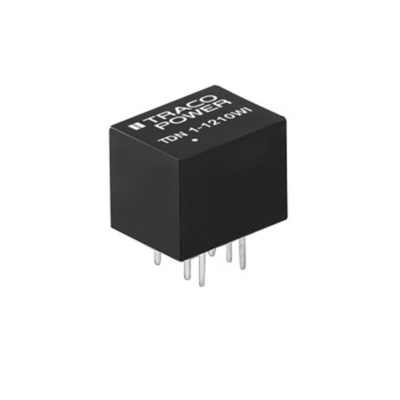

TDN 1-1210WI, TRACOPOWER TDN 1WI DC-DC Converter, 3.3V dc/ 300mA Output, 4.5 → 18 V dc Input, 1W, Through Hole, +90°C Max Temp, Преобразователь

Compact DIP package 13.2 x 9.1 x 10.2 mm
Fully regulated outputs
I/O-isolation 1500 VDC
Operating temperature range –40°C to +90°C without derating
Short circuit protection
Remote On/Off
3-year product warranty

The TDN 1WI Series comprises 1 Watt fully regulated, high performance DC/ DC converters. They come in a compact cubical package of only 1.23 cm3. Full load operation is reliable up to 90°C environment temperature. With 1’500 VDC I/O-isolation voltage, external On/Off, and short current protection they cover a wide range of application when space is limited. The input of the converters is designed for a wide voltage range (4:1) and minimum load is not required.

Traco Power Supplies and Converters Portfolio

Datasheet
