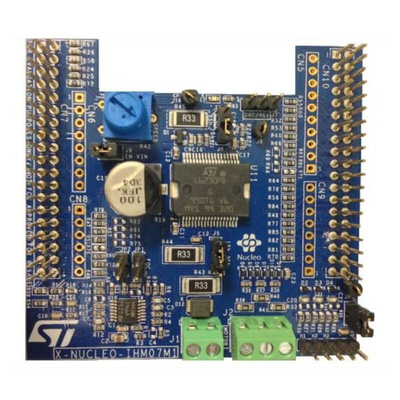

X-NUCLEO-IHM07M1 BLDC/PMSM Motor Driver Expansion Board
The X-NUCLEO-IHM07M1 is a three-phase Brushless DC motor (BLDC) driver expansion board based on the L6230 device. The L6230 driver is optimized for six-step and FOC algorithms thanks to independent current sensing.
• Operating voltage range: +8 to +48Vdc
• Peak output current: 2.8A (1.4Arms)
• Operating frequency: Up to 100kHz
• Non-dissipative over-current detection and protection
• Cross-conduction protection
• Over-temperature protection
• Selectable 3-shunt or 1-shunt motor current sensing circuit
• Hall/Encoder motor sensor connector and circuit
• Potentiometer for manual speed setting
• User LED
• Screw terminals for motor signals and power supply
• ST morpho connectors for host MCU board
• Pads for Arduino Uno r3 Shield headers
• Compatible with STM32 Nucleo MCU boards
• Dimensions: 70 x 66mm
• Compatible with ST Six Step or ST FOC control algorithms
