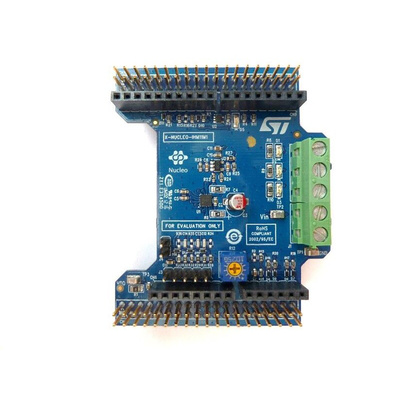

X-NUCLEO-IHM11M1 BLDC Motor Driver Expansion Board
The X-NUCLEO-IHM11M1 is a low-voltage three-phase brushless DC (BLDC) motor driver expansion board based on the STSPIN230 triple half-bridge chip. The device is designed for battery-powered applications and can be forced into a zero-consumption state, yielding a significant increase in battery life.
• Operating voltage range: +1.8 to +10Vdc
• Output current: 1.3Arms
• Current control with adjustable off-time
• Standby consumption: <80nA
• Non-dissipative over-current detection and protection
• Over-temperature protection
• Interlocking function
• Hall/Encoder motor sensor connector and circuit
• 3 x Output activity LEDs
• Fault LED
• Potentiometer for manual speed control
• Screw terminals for motor signals and power supply
• ST morpho connectors for host MCU board
• Arduino Uno r3 compatible Shield headers
• Compatible with STM32 Nucleo MCU boards
• Compatible with ST Six Step or ST FOC control algorithms
Motor Controllers & Drivers, STMicroelectronics
Техническая спецификация
X-Nucleo STSPIN230 Expansion Board datasheet| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
