X-NUCLEO-IHM13A1, STMicroelectronics Motor Configuration for STSPIN250 for STM32 Nucleo

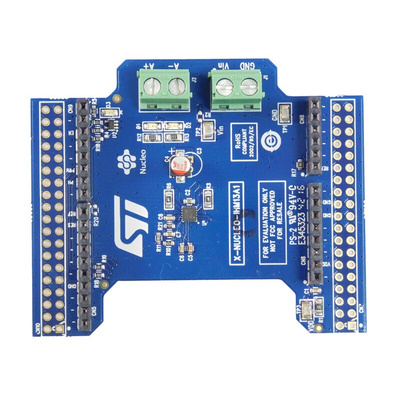

X-NUCLEO-IHM13A1 DC Motor Driver Expansion Board

The X-NUCLEO-IHM13A1 is a low-voltage brushed DC motor driver expansion board based on the STSPIN250 quad half-bridge chip. The device is designed for battery-powered applications and can be forced into a zero-consumption state, yielding a significant increase in battery life.

• Operating voltage range: +1.8 to +10Vdc
• Output current: 2.6Arms
• Current control with adjustable off-time
• Standby consumption: <80nA
• Non-dissipative over-current detection and protection
• Over-temperature protection
• 2 x Output activity LEDs
• Fault LED
• Screw terminals for motor signals and power supply
• ST morpho connectors for host MCU board
• Arduino Uno r3 compatible Shield headers
• Compatible with STM32 Nucleo MCU boards

Motor Controllers & Drivers, STMicroelectronics

X-Nucleo STSPIN250 Expansion Board datasheet
