RS PRO Straight, Panel Mount, Female to Male Type C USB Connector, Разъем

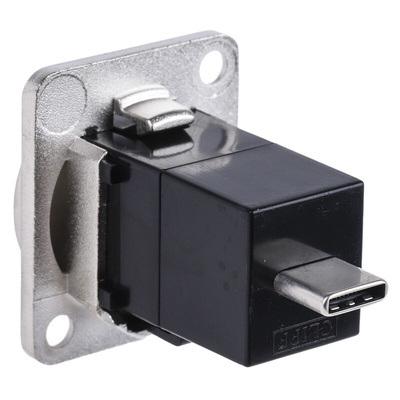

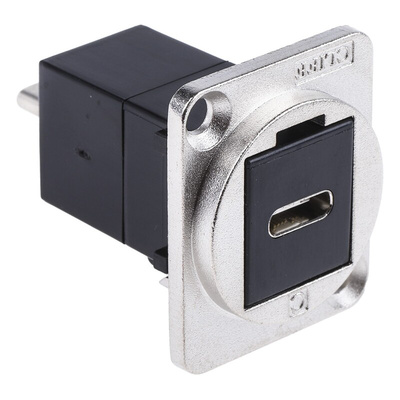

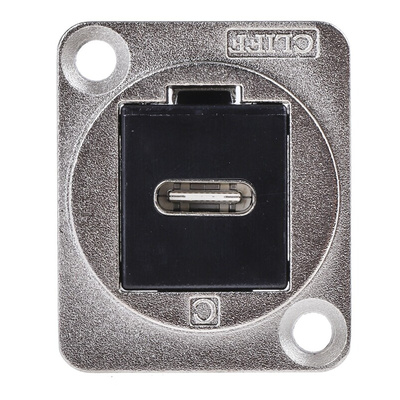

RS PRO XLR Feed Through USB-C Panel Mount Connector

A highly reliable Type C USB connector designed to fit into a standard XLR panel cut out making it ideal for small or high-density panels.
The USB connector is designed to feed through the panel which means that it requires no soldering or punch terminations or any specialist tools to install and can be connected by a standard cable.
Featuring a diecast Nickel-plated frame for strength and resistance to accidental damage and an ABS insert with a fire rating of UL94V-0 dictating the in the case of a fire it will not burn for a period of more than 10 seconds protecting equipment and premises.
Capable of front or rear mounting and featuring a low rear profile build the USB C connection will fit into the tightest panels. Suitable for use in wide range of applications and idea for the development of custom configurations for rack panels and wall plates.

Features and Benefits

• Female to male


• USB C connector


• Panel mount


• Feed through


• Voltage rating of 30V


• Current rating of 3A


• Insulation resistance of 100 MΩ


• Contacts resistance of 30 mΩ
