RS PRO Straight, Panel Mount, Socket Type A 3.0 USB Connector, Разъем

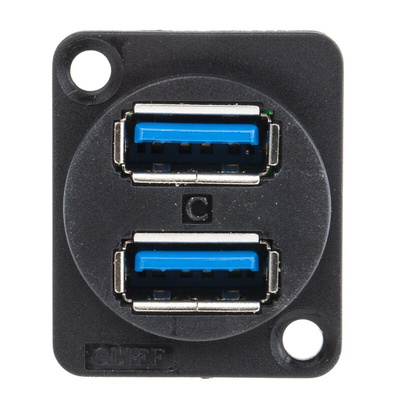

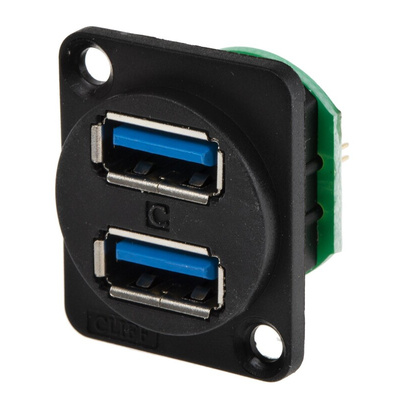

RS PRO Panel Mount Dual USB 3.0 Socket

A highly reliable dual USB socket designed to fit into a single standard 24mm panel cut out making it ideal for small or high-density panels.

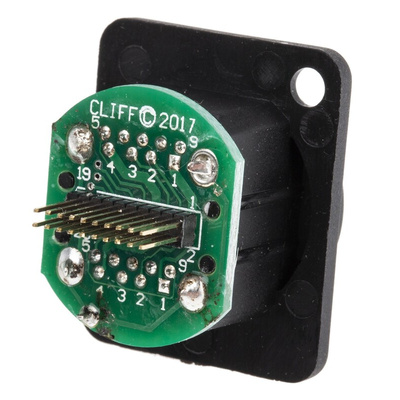

Supplied in a XLR shell the USB socket features header output pins enabling soldering directly to a PCB or for connection to a header cable.
Backwards compatible for use with USB 2.0 connections the panel mount USB 3.0 port is easy to install and guarantees a secure and efficient connection.

Feature and Benefits

• 2 x USB 3.0 ports


• Female


• Panel cut out of 24mm


• Dimensions of 26 x 26 x 25.6mm


• Solder termination or header cable connection


• Countersunk mounting holes

Why RS PRO?

Looking to reduce costs but keep the same quality?
With a choice of over 65,000 products – all of which are rigorously tested against demanding industry standards before they are given the RS PRO seal of approval.
Trusted by engineers the world over, we want you to be confident that you’re receiving the exceptional quality, reliability and the best value for money.

RS PRO Datasheet
