SKF 6205/C3 Single Row Deep Groove Ball Bearing- Open Type 25mm I.D, 52mm O.D, Шарикоподшипник

SKF Plain Deep-Groove Ball Bearing, 25mm ID, 52mm OD - 6205/C3

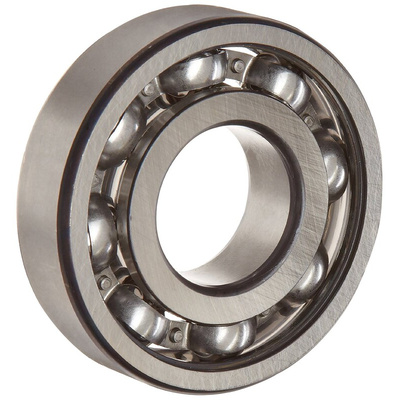

Choose this deep-groove ball bearing from SKF to lower friction and minimise load strain in your machinery. A precision-engineered raceway holds eight metal balls between an inner and outer ring. By rotating along with machine movement, the balls dispel heat and abrasion. As they're arranged in a single row, the unit can handle radial and axial loads in one direction. A compact 52mm outer diameter means this bearing won't add unnecessary bulk to your setup, while steel construction resists corrosion wear and helps provide long-lasting operation.

• Load rating of 7.8kN (kilonewtons) while static and 14.8kN in motion to support heavy machinery and reduce strain
• Deep groove between the inner and outer rings so you can add a protective rubber seal
• Open-end design allows you to easily apply lubricant without removing the bearing for your machine

Applications

• Water pumps
• Farming equipment
• Power generators
• Industrial transmissions

How fast does this ball bearing rotate?

This ball bearing rotates at speeds to suit the needs of your equipment. It has a maximum 28,000r/min (rotations per minute) reference speed for high-velocity machines and an 18,000r/min limiting speed when used with regular machinery.
