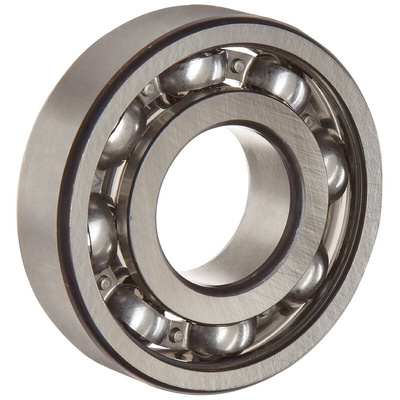

SKF 6303/C3 Single Row Deep Groove Ball Bearing- Open Type 17mm I.D, 47mm O.D, Шарикоподшипник

1440851
Номер производителя: 6303/C3Производитель: SKF
Цена за шт.
1856.40 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Deep Groove Ball Bearings

Deep groove ball bearings are versatile. They are simple in design, non-separable, suitable for high speeds and are robust in operation, requiring little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from SKF in many designs, variants and sizes.

Product Application Information

SKF single and double row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.
Single row deep groove ball bearings are available open or capped (with seals or shields).
Double row deep groove ball bearings are only available as open bearings (without seals or shields).

Suffixes

2RS1 - Contact seal, NBR, on one or both sides
2Z - Shield on one or both sides
C3 - Radial internal clearance greater than normal
2RZ - Non-contact seal, NBR, on one or both sides

SKF Ball Bearing, Parallel Bore Type, Plain Race, 17mm ID, 47mm OD - 6303/C3

Looking for a ball bearing that runs quiet? Try this single-row deep-groove ball bearing from SKF. It produces minimal vibration so helps to keep machinery noise down. With its robust steel construction, the unit is able to withstand the demands of harsh environments. Steel also resists corrosion, so is safe to use in humid conditions. Low friction means the unit stays cool, helping your equipment run efficiently at lower temperatures. For reliability, this bearing's optimised geometry allows it to reach high rotational speeds in both axial and radial load applications.

Features & Benefits

• Robust steel cage to keep rolling elements in place for optimal performance when rotating either forwards or backwards
• Dynamic load rating of 14.3 kN, so suitable for heavy loads
• Simple design makes it quick and easy to mount

Applications

• Food and beverage industry
• Industrial automation
• Agricultural equipment
• Textile industry

How quickly will this bearing wear down?

This bearing is part of SKF's Explorer range with rolling elements and raceways designed to enhance the formation of a hydrodynamic lubricant film. This reduces wear on the bearing, so you can be sure of an extended lifespan.

Техническая спецификация
pdfDatasheet
pdfSKF Bearing Designations
pdfDatasheet - 6303/C3
pdfCatalogue - Rolling Bearings
pdfCatalogue - SKF Coatings
Диаметр - внутренний:
17мм
Динамическая грузоподъемность:
14.3кН
Зазор подшипника:
C3
Код части подшипника:
6303
Количество рядов:
1
Материал:
Сталь
Материал клетки:
Листовой металл
Материал кольца:
Сталь
Материал шара:
Сталь
Модель р:
6303C3
Наружный диаметр:
47мм
Подшипник - тип:
Single Row Deep Groove Ball Bearing
Серия подшипников:
3 Medium
Статическая грузоподъемность:
6.55кН
Тип кольца:
Plain
Тип отверстия:
Parallel
Уплотнительное устройство:
Open Type
Ширина кольца:
14мм
