SKF 6304/C3 Single Row Deep Groove Ball Bearing- Open Type 20mm I.D, 52mm O.D, Шарикоподшипник

SKF Deep-Groove Ball Bearing, 20mm ID, 52mm OD - 6304/C3

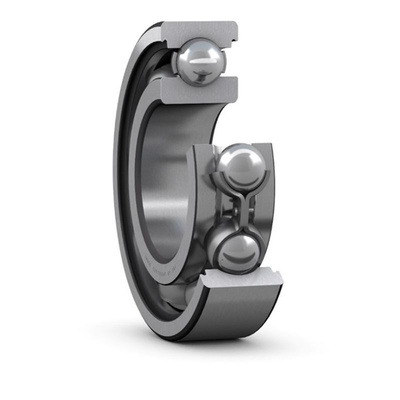

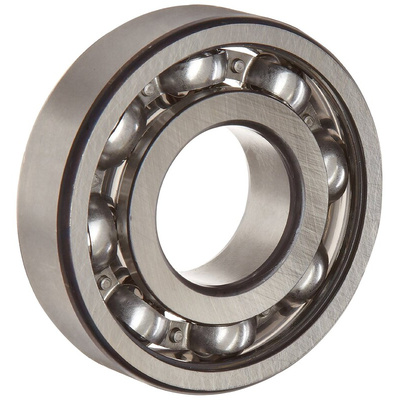

Ensure your motor runs with a continuously smooth movement by fitting this deep-groove ball bearing from SKF. It features a steel cage, race and balls, so you can be sure it's strong enough to cope with the heavy loads you'd expect in demanding domestic appliances, power tools and industrial machines. The balls inside the single-row bearing run along a deeply grooved track so they move freely with minimal noise, friction and vibration. This helps them support radial and axial loads with high rotational speeds of up to 19,000RPM and support efficient performance.

• Open-ended design for easy maintenance and direct access for lubrication
• Dynamic load rating of 16.8kN and static rating of 7.8kN for use in heavy-duty applications

Applications

• Vehicle gearboxes and motors
• Domestic appliances
• Power tools
• Turbines and pumps

What are the dimensions of this deep-groove ball bearing?

This SKF ball bearing has an inside dimension of 20mm, an outside dimension of 52mm and a precision-engineered race with a width of 15mm. This means it's suitable for mounting on the shafts of smaller machines, tools or motors.

Datasheet

SKF Bearing Designations
