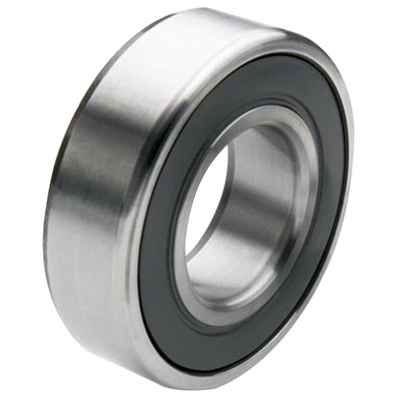

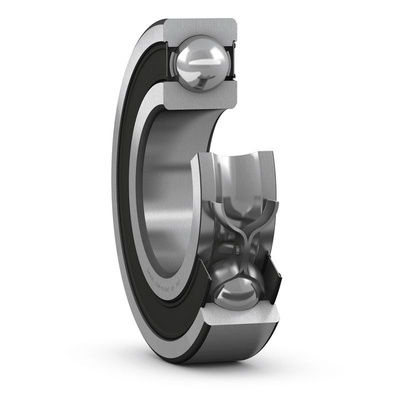

SKF 61901-2RS1 Single Row Deep Groove Ball Bearing- Both Sides Sealed 12mm I.D, 24mm O.D, Шарикоподшипник

SKF Plain Deep Groove Ball Bearing, 12 mm ID - 61901-2RS1

This versatile deep groove ball bearing from SKF is optimized for low friction and low noise, making it the ideal choice for use at high rotational speeds. It can accommodate radial and axial loads in both directions to suit a wide range of applications. The robust steel construction ensures durability, while contact seals on both sides extend service life by keeping dust and other particles out. The bearing comes pre-greased for virtually maintenance-free lifetime use.

• Dynamic load rating of 2.91 kN
• Static load rating of 1.46 kN
• Inner diameter of 12 mm
• Outer diameter of 24 mm
• Plain race type
• Parallel bore type
• Single row
• Race width of 6 mm

Application Information

• Food processing
• Automotive industry
• Printing
• Medical and pharmaceutical industries

What type of seal is used in this deep groove ball bearing?

This seal uses sheet steel-reinforced NBR (nitrile-butadiene rubber) which offers high durability and superior resistance to oil and fuels.

Are deep groove ball bearings an energy-efficient choice?

As they operate with low friction torque, deep groove ball bearings have reduced power demands, making them an economical choice.
