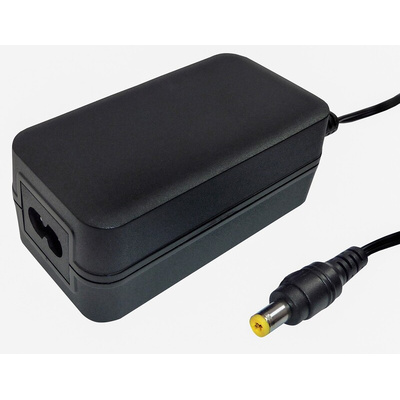

RS PRO 15W Plug-In AC/DC Adapter 5V dc Output, 0 → 3A Output, Блок питания

RS PRO 5 V DC Power Supply, 15 W, 0 → 3 A, 2-Pin IEC Connector

This 15 W switch-mode power supply (SMPS) from RS PRO converts AC currents to DC so that you can connect compatible devices to your mains electricity. It comes with a universal 2-Pin IEC (C8) input for use with anything from set-top boxes to lighting systems. The unit is also equipped with a 2 A fuse that protects it from overcurrent and helps it recover automatically in case of short-circuiting.
This adaptor complies with US-recognised Energy Efficiency Level VI, using just 0.100 W of power under no-load conditions to save electricity. It also produces minimal amounts (200 mV) of the noise and ripple effect that often occurs while switching from AC to DC.

Features and Benefits

• Output voltage rating of 5 V DC
• Cable length of 1500 mm
• Efficiency of 81.38%
• Single output
• Input frequency range of 47 to 63 Hz
• Input voltage range of 90 to 264 V AC
• Maximum input current of 800 mA
• Operating temperature range of 0°C to +40°C
• Mean time between failure (MTBF) of 50000 h
• Output current range of 0 to 3 A
• ITE approved
• Holdup time of 10 ms
• Line regulation range of ±2%
• Dimensions of 88 (L) x 45.5 (W) x 35 mm (D)
