RS PRO Plastic 1.8m Adapter Power Supply for use with CCTV Cameras, Chargers, Lamps and lights, Speakers, Блок питания

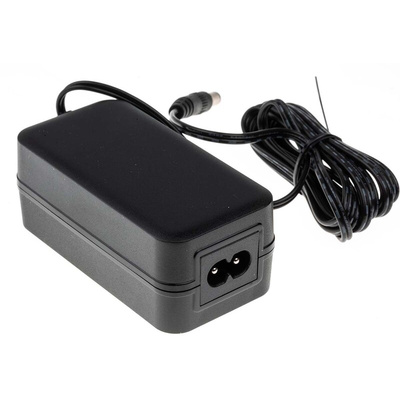

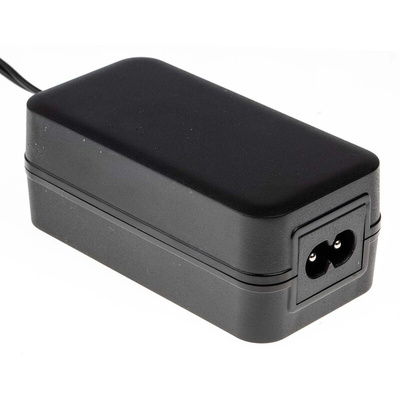

RS PRO 12 V dc Compact CCTV Power Supply, 0 – 2 A, 2-Pin IEC Connector

From RS PRO this is the 12 V dc compact CCTV power supply a complete power supply solution with a 2-Pin IEC input plug type, C8 input connector and 1.8 m cable. The power supply not only has a VI efficiency rating, 150 W AC/DC (Class 1), provides overload, over voltage and short circuit protection all within a compact fully enclosed plastic housing.

The RS PRO power supply also is a reliable and robust solution providing 100,000 hours of MTBF (mean time between failures) at 25°C, 86% electrical efficiency, 2 A current fuse input protection plus a wealth of other benefits including an operating temperature range of 0°C to 40°C.

Energy Efficiency Level VI Compliance

A major benefit to the design of this power supply is that is complies with the new Energy Efficiency Level VI Compliance standards. These standards ensure a greater efficiency over Level V units, using less power more efficiently resulting in lower energy bills and a lower impact on the environment.

Features and Benefits:

• CCTV Power Supply, VI Energy efficiency


• Energy saving compact design


• Energy efficient Level VI compliant


• Universal input


• C8 Input connector


• 2-Pin IEC input plug type

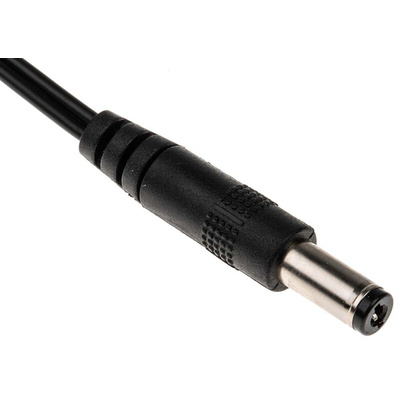

• 1 Output, 2.1 x 5.5 mm Output connection


• 1.8 m Cable length


• MTBF 100,000 hours at 25°C

Input Features

• 100 to 240 V ac input voltage


• 50/60 Hz rated frequency


• 47 to 63 Hz full frequency range


• Inrush current 50 A maximum

Output Features

• 12 v dc output voltage rating


• 0 A to 2 A Output current rating


• 24 W rated output power


• Set up Rise time 2 s at maximum 110 V ac full load


• Overload protection, recovers automatically after fault removed


• Over voltage protection, auto recovery


• Short circuit protection

Applications

The main purpose of a desktop power supply is predominantly for laptops. However, you should always check the appliance will accept the electrical output specifications and connector type. This Power Supply is designed for CCTV use, other items within the RS PRO range supply power for some of the following applications:

• CCTV Cameras


• Chargers


• Lamps and lights


• Speakers

What is a desktop power supply?

A desktop power supply is a PSU specifically designed to be used by small items or applications, like laptops, CCTV cameras or chargers. Due to the output of the PSU itself, they wouldn't be a suitable power source for high tech desktops. A PC power supply is created specifically to be used with that computer, whereas these units can be interchanged, providing the technical specifications of the appliance meet the PSU's in terms of safety and usability. This power supply is for industrial use where items to be used meet the output specification.

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Note

The power supply is supplied without a power cable, please see essential accessory for a selection of compatible leads. Please make sure the device is able to support the power from this power supply for both operational and safety reasons.

Standards

cETLus, TUV-GS, RCM (C-Tick), CB, FCC, CE, RoHS & REACH
