RS PRO 20W Plug-In AC/DC Adapter 5V dc Output, 0 → 4.0A Output, Блок питания

1440968
Производитель: RS PRO
Цена за шт.
7023.90 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

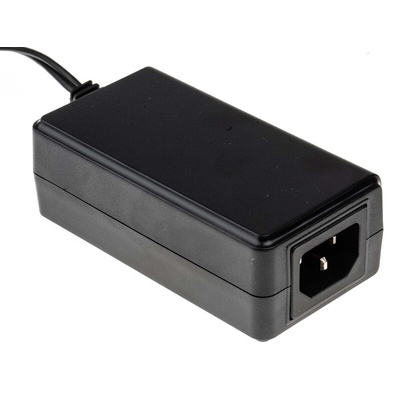

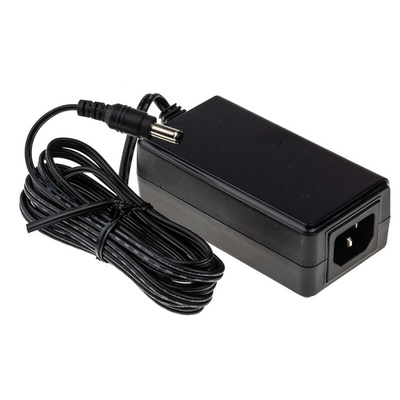

RS PRO 5 Vdc Power Supply

A switching supply with an output of +5V, providing desk power to technology and electrical equipment. Featuring short circuit protection, low energy consumption and 83.08% efficiency, all encased in a tough black plastic. Our RS Pro line of supplies provide a reliable & robust power supply solution.

Features and Benefits:

• 1200mm Cable
• Level VI Efficiency
• 3 Pin IEC (C14) Inlet
• Universal Input 90-264V-AC 47-63Hz
• Efficiency >83.08%
• Short Circuit Protected
• Operating Temperature 0-40°C
• RoHS-REACH Compliant
• Limited Power Source (LPS)
• Very Low Power Consumption <0.10W
• ERP II Regulations Compliant

Energy Efficiency Level VI Compliance

A major benefit to the design of these units is they comply with the new Energy Efficiency Level VI Compliance standards. These standards ensure a greater efficiency over Level V units, using less power more efficiently results in lower energy bills and a lower impact on the environment.

What is a desktop power supply?

A desktop supply is a PSU specifically designed to be used by small items or applications, like laptops, CCTV cameras or chargers. Due to the output of the PSU itself, they wouldn't be a suitable source for high tech desktops. A PC power supply is created specifically to be used with that computer, whereas these units can be interchanged, providing the technical specifications of the appliance meet the PSU's in terms of safety and usability.

Are these units only a laptop power supply?

The main purpose of a desk supply is predominantly for laptops. However, providing the appliance or item will accept the output electrical specifications and connector type, you could use this module in any of the following applications:
• Speakers
• Chargers
• CCTV Cameras
• Lamps and Lights

Note

The power supply is supplied without a power cable, please see essential accessory for a selection of compatible leads. Please make sure the device is able to support the power from this adaptor for both operational and safety reasons.

Техническая спецификация
pdfPower Supplies Guide EN
pdfRS PRO Datasheet
Встречающиеся стандарты:
AS/NZS 60950.1, BS EN 60950-1, CB, CE, CSA C22.2 No.60950-1-07, cUL, EN 60950-1, FCC, J60950-1, SAA, TUV, UL, UL 60950-1
Входное напряжение:
90 → 264В перем. тока
Входной разъем:
IEC C14

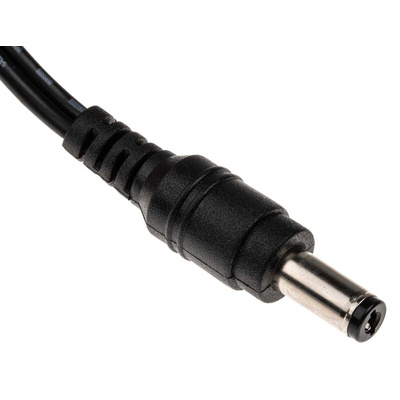

Выходной разъем:
2.1 x 5.5 mm Connector
Выходной ток:
0 → 4.0A
Глубина:
36мм
Диапазон регулирования линии:
±2%
Длина:
99мм
Кабель - длина:
1200мм
Количество выходов:
1
Максимальная температура:
+40°C
Минимальная температура:
0°C
Мощность номинальная:
20Вт
Напряжение выходное:
5В пост. тока
Серия:
HK-AB
Среднее время безотказной работы:
50000ч
Тип адаптера:
Plug-In Adapter
Тип вилки:
3-Pin IEC
Уровень энергоэффективности:
VI
Ширина:
52мм
Эффективность:
85%
