RS PRO 30W Plug-In AC/DC Adapter 12V dc Output, 0 → 2.5A Output, Блок питания

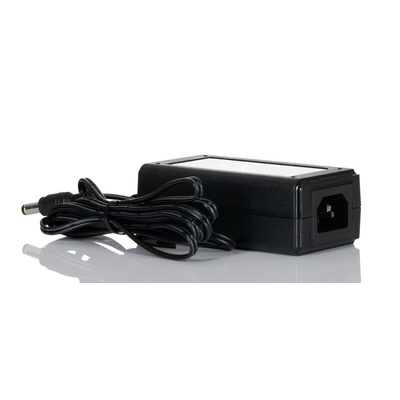

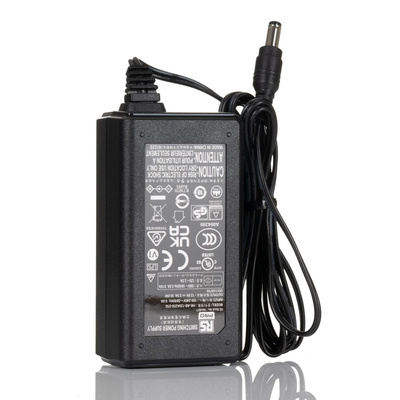

RS PRO 12V Desktop Power Supply

With a sleek design, this item offers a switching power supply with an output of +12V. Providing desk power for technology and business equipment with a lead free adapter, ideal for replacements or your travel power supply needs. Featuring 86.95% efficiency, short circuit protection and very low power consumption.

Features and Benefits:

• 1800mm Cable
• Level VI efficiency
• 3 Pin IEC plug
• (C14) Input connector
• Universal input 90-264 V-AC 47-63 Hz
• 0-40°C Operating temperature
• RoHS-REACH Compliant
• Very low power consumption <0.10W ERP II Regulation compliant
• Approved to UL, cUL, FCC, CB, SAA, REACH & RoHS

What is a desktop power supply?

A desktop power supply is a PSU specifically designed to be used by small items or applications, like laptops, CCTV cameras or chargers. Due to the output of the PSU itself, they wouldn't be a suitable power source for high tech desktops. A PC power supply is created specifically to be used with that computer, whereas these units can be interchanged, providing the technical specifications of the appliance meet the PSU's in terms of safety and usability.

Are these units only for use as a laptop power supply?

The main purpose of a desktop power supply would definitely be for laptops. However, providing the appliance or item will accept the output electrical specifications, you could use this module in any of the following applications:
• Speakers
• Chargers
• CCTV Cameras
• Lamps and Lights

Note

Please make sure the device is able to support the power from this power supply for both operational and safety reasons.
