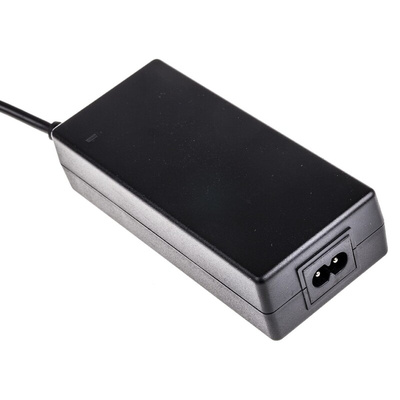

RS PRO 80W Plug-In AC/DC Adapter 12V dc Output, 7A Output, Блок питания

RS PRO 12 V DC Power Supply, 80 W, 7 A

Connect your DC electronic devices to mains AC using this 12 V DC switch-mode power supply from RS PRO. This adaptor is equipped with a universal 2.1 x 5.5 x 12 mm centre positive connector capable of charging laptops, notebooks and netbooks.
The adaptor provides overvoltage and overcurrent protection, turning off in case of excess current. When the supply is back to normal after overvoltage, it recovers automatically. It uses less than 0.1 W of electricity when the device is on standby, complying with US-recognised Energy Efficiency Level VI.
This power supply has a power efficiency of 88% and offers a low noise and ripple effect of just 180 mV to ensure stable and reliable performance. It also has been rigorously tested for quality as part of the trusted RS PRO range.

Features and Benefits

• IEC320-C8 input Connector
• Input voltage range of 100 V to 240 V AC
• Overall dimensions of 133 (L) x 59 (W) x 34 mm (D)
• Input frequency range of 50 to 60 Hz
• Operating temperature range of 0ºC to +40ºC
• Output current range of 7 A
• Rated output power of 80 W
• MTBF (mean time before failures) of 10000 hours
• Weight of 450 g
