RS PRO Power Supply for use with CCTV Cameras, Chargers, Lamps and lights, Speakers, Блок питания

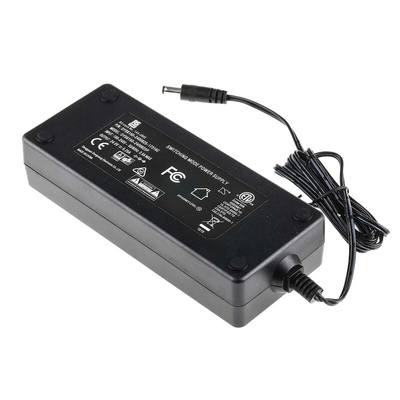

RS Pro 24 V dc CCTV Power Supply

These CCTV power supplies are 150 W AC-DC (CLASS I), with a Level VI efficiency. Available with IEC 2 Pin (C8)/IEC 3 Pin (C6)/IEC 3 Pin (C14) Inlets.

Our RS Pro line of desk power supplies provides a reliable & robust power supply solution. They come equipped with over voltage, over current & short circuit protection.

Energy Efficiency Level VI Compliance

A major benefit to the design of these units is they comply with the new Energy Efficiency Level VI Compliance standards. These standards ensure a greater efficiency over Level V units, using less power more efficiently results in lower energy bills and a lower impact on the environment.

Features and Benefits:

• Energy saving compact design
• Energy Efficiency Level VI compliant
• Regulated output
• Universal Input 90∼264V AC 47∼63Hz
• 88% Efficiency
• 1500mm Cable

What is a desktop power supply?

A desktop power supply is a PSU specifically designed to be used by small items or applications, like laptops, CCTV cameras or chargers. Due to the output of the PSU itself, they wouldn't be a suitable power source for high tech desktops. A PC power supply is created specifically to be used with that computer, whereas these units can be interchanged, providing the technical specifications of the appliance meet the PSU's in terms of safety and usability. This item in particular is generally for industrial use where items to be used meet the output specification.

Are these units only a laptop power supply?

The main purpose of a desktop power supply is predominantly for laptops. However, you should check the appliance or item will accept the output electrical specifications and connector type. This item is designed for CCTV use, other items in our range supply power for some of the following applications:

• Speakers
• Chargers
• CCTV Cameras
• Lamps and Lights

Note

The power supply is supplied without a power cable, please see essential accessory for a selection of compatible leads. Please make sure the device is able to support the power from this power supply for both operational and safety reasons.

Standards

cETLus, TUV-GS, RCM (C-Tick), CB, FCC, CE, RoHS & REACH

Power Supplies Guide EN

RS PRO Datasheet
