RS PRO Power Supply for use with CCTV Cameras, Chargers, Lamps and lights, Speakers, Блок питания

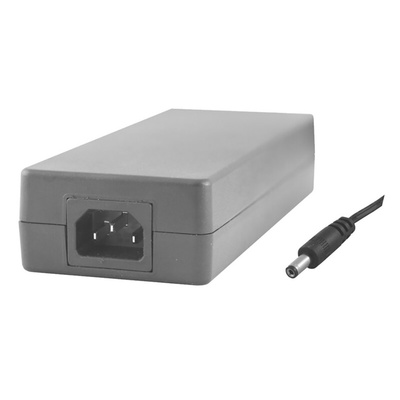

RS PRO 48 V DC CCTV Power Supply, 150 W, 0 → 3.12 A, 3-Pin IEC Connector

This 150 W switch-mode power supply (SMPS) from RS PRO converts AC input currents into a stable output of 48 V DC for use with electronic devices. You can also use it to consolidate the power source of multiple cameras to a central point. This SMPS has an adjustable output voltage, so you can fine-tune the charge to suit even sensitive electrical equipment.
For your safety, the product is equipped with overcurrent, overload and short-circuit protection. It also consumes less than 0.100 W of power when there's no current flowing through the circuit, minimising energy waste.

Features and Benefits

• Cable length of 1500 mm
• Dimensions of 173 (L) x 71 (W) x 37 mm (D)
• 3-Pin IEC plug
• IEC C14 input connector
• Maximum input current of 2.5 A
• Holdup time of 5 ms
• One output
• Input voltage range of 85 to 264 V AC
• Input frequency range of 47 to 63 Hz
• Line regulation range of ±3%
• Load regulation range of ±5%
• 2.1 x 5.5 mm output connection
• Mean time between failures (MTBF) of 50000 h
• Output current range of 0 to 3.12 A
• Operating temperature range of 0°C to +40°C
• Ripple and noise of 300 mV
• Efficiency of 88%
