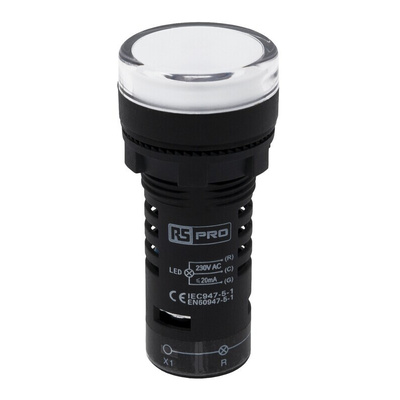

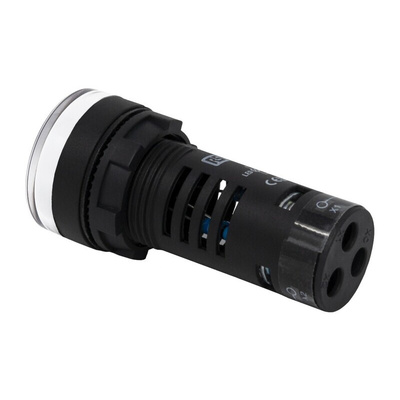

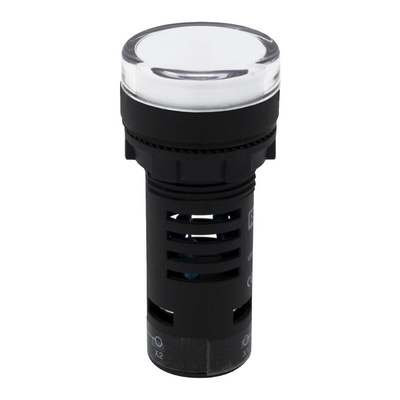

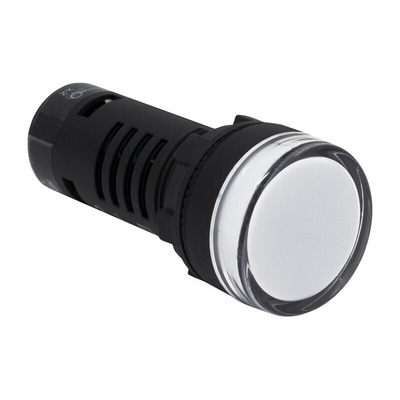

RS PRO, Panel Mount Red/Green LED Indicator, 22mm Cutout, IP65, Round, 230V ac/dc

RS PRO, Panel Mounting Red/Green LED Indicator, 22 mm Cutout, IP65, Round, 230 V AC/DC

You can use these RS PRO dual colour LED pilot or power indicator lights to indicate the operational status of your industrial process or equipment. They combine red and green coloured lights in a single device, which allows you to add extra functionality to your panel while saving space on your panel.
The LEDs emit intensive light and are brighter than incandescent bulbs. They're also energy-efficient and are designed to last for up to 30,000 hours. These pilot lights are panel-mounting components with a lock nut and screw terminals so you can mount and connect them easily.
They have an Ingress Protection (IP) rating of IP65, so you can be sure they are safe from dust and low-pressure jets of water. They also comply with British (BS EN 61340-5-1:2007) and American (ANSI/ESD S20.20:2014) electrostatic discharge (ESD) standards, to guarantee the risk of a discharge is minimised.

Features and Benefits

• Current rating of ≤20 mA
• Cutout diameter of 22 mm
• Ingress Protection (IP) rating of IP65
• LED lamp type
• Panel mounting type
• Red/green pilot light colour
• Round pilot light shape
• LEDtec series
• Voltage rating of 230 V AC/DC

Datasheet

Dual Colour Indicator Wiring Instructions
