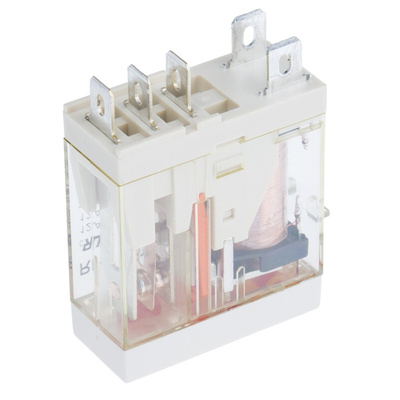

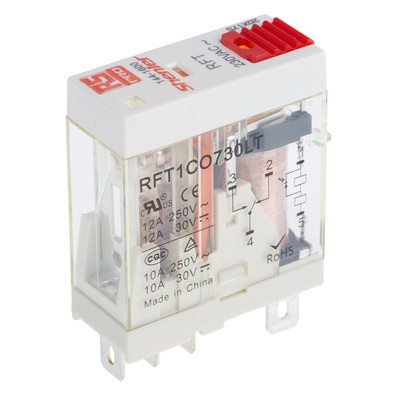

RS PRO Plug In Power Relay, 230V ac Coil, 10A Switching Current, SPDT, Реле

RS PRO Non-Latching Relay, SPDT, Plug-In, 230 V AC Coil, 10 A Switching Current

This RS PRO non-latching relay plugs into your circuit to switch the current on and off. It stays in the 'normally closed' (NC) position for safety until a live current is applied. Then the relay switches to 'normally open' (NO), activating your circuit.
Checking the device's internal function is easy, thanks to the see-through window cover material. You can tell which type of current is active by the colour-coded buttons – red for alternating (AC) and blue for direct current (DC).
This product meets a variety of international standards, including the Care Quality Commission (CQC), Underwriters Laboratories (UL) and the Conformité Européenne (CE), so it's safe to use. It also complies with the Restriction of Hazardous Substances (RoHS) ensuring it contains only minimal amounts of any potentially harmful materials.

Features and Benefits

• Interface application
• Coil power of 530 mW
• Coil resistance of 23 kΩ
• Coil voltage of 230 V AC
• Single pole, double throw (SPDT) contact configuration
• Silver alloy contact material
• Dimensions of 29 (lenght) x 28 (height) x 12.6 mm (depth)
• Isolation coil to contact of 5 kV AC
• Life of 10000000 cycles
• Operating temperature range of -40°C to +55°C
• Maximum switching current (AC) of 10 A
• Maximum switching current (DC) of 12 A
• Maximum switching power (AC) of 250 V, 1 VA
• Maximum switching power (DC) of 30 V, 0.53 W
• Plug-in mounting type
• Single pole
• Interface relay module switching classification
• High capacity and reliability
• Slim, compact size
• Meets European conformity (CE), Care Quality Commission (CQC) and Underwriters Laboratories (cULus) standards
• Printed circuit board (PCB) pin terminal type
