RS PRO Plug In Power Relay, 230V ac Coil, 8A Switching Current, DPDT, Реле

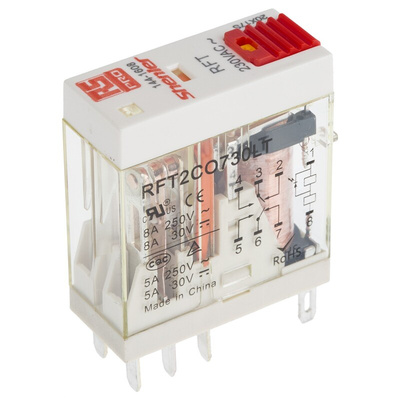

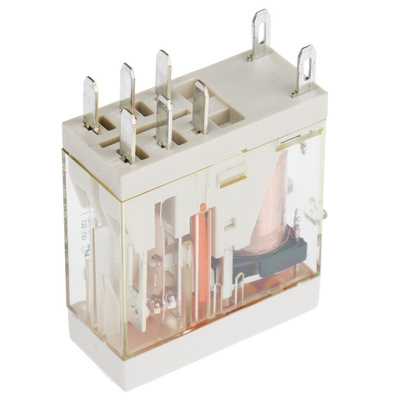

RS PRO Non-Latching Relay, DPDT, Plug-In, 230 V AC Coil, 8 A Switching Current

Need a controller for turning electrical currents on and off? Use this non-latching relay from RS PRO. When a current is applied, it switches magnetically from 'normally closed' (NC) to 'normally open' (NO). This makes it a good choice for use in applications that use a push-button activator.


You can see at a glance if the current is on or off thanks to the relay's LED (light-emitting diode) indicator. It's suitable for use at temperatures ranging from -40°C to +55°C, making it safe for use in demanding industrial settings.


Use this versatile product for a variety of applications, such as regulating, amplifying and measuring voltage. It has been stringently tested to ensure compliance with a range of international standards, so you can rest assured it's safe to use.

Features and Benefits

• Interface application


• Coil power of 530 mW


• Coil resistance of 23 kΩ


• Coil voltage of 230 V AC


• Double pole, double throw, (DPDT) contact configuration


• Silver alloy contact material


• Dimensions of 29 (length) x 27 (height) x 12.6 mm (depth)


• Isolation coil to contact of 5 kV AC


• Life of 10,000,000 cycles


• Operating temperature range of -40°C to +55°C


• Maximum switching current (AC) of 5 A


• Maximum switching current (DC) of 8 A


• Maximum switching power (AC) of 250 V, 1 VA


• Maximum switching power (DC) of 30 V, 0.53 W


• Plug-in mounting type


• Two poles


• Interface relay module switching classification


• High capacity and reliability


• Slim, compact size


• Meets European Conformity (CE), Care Quality Commission (CQC) and Underwriters Laboratories (cULus) standards


• Printed circuit board (PCB) pin terminal type
