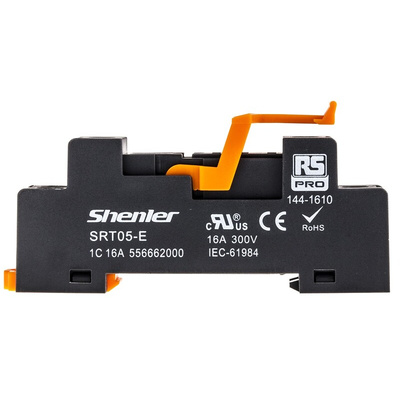

RS PRO 5 Pin 300V DIN Rail Relay Socket, for use with RFT Interface Relay, Контактная колодка

RS PRO 12A 5 Pin Relay Socket for use with RFT Relay (300V)

A robust and reliable 5 pin relay socket designed for DIN rail mounting for the easy connection and disconnection of relays. Featuring an easy to use switching clip enabling you to switch the electrical signal when needed. Suitable for use industrial electronics applications including automation, and telecommunications.
Relay sockets provide a bridge between a power source enabling relays to be connected directly to the relay socket for hassle free replacement.
Suitable for industrial applications the socket is designed for a load of 300V with a current rating of 12A for 1 pole and 8A for 2 pole use and is designed with simple and quick screw termination for easy solder free installation.
Suitable for use with RS PRO RFT Series relays.

RS PRO RFT Series Relays Range

144-1607 DPDT 8A 110V ac
144-1597 SPDT 10A 12V ac
144-1598 SPDT 10A 24V ac
144-1596 SPDT 10A 110V dc
144-1594 SPDT 10A 24V dc
144-1593 SPDT 12A 12Vdc
144-1600 SPDT 10A 230V ac
144-1608 DPDT 8A 230V ac

Features and Benefits

• Relay socket


• Voltage rating of 300V


• Current rating of 12A (1 pole), 8A (2 pole)


• 5 contacts


• Dielectric strength of 2500 V/s


• Wire size of 0.5 – 2.5mm/ 20 – 14AWG


• Operating temperature of 40 to +85°C


• DIN rail mounting


• Screw termination


• Weight of 22g

Standards and Approvals: CE, C-UR, CQC, EAC
