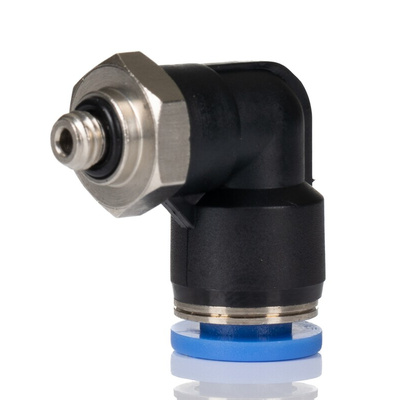

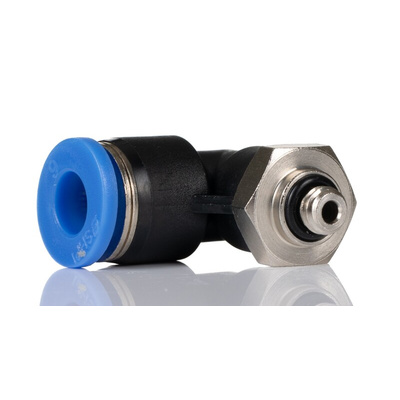

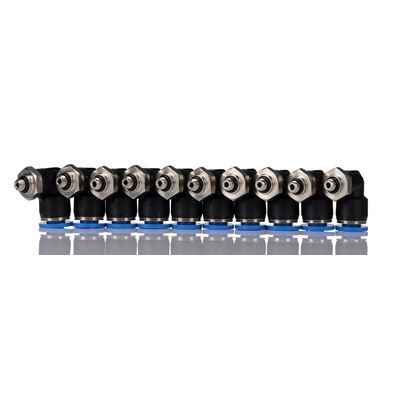

RS PRO Elbow Threaded Adaptor, M5 Male to Push In 6 mm, Threaded-to-Tube Connection Style, Угловой фитинг

RS PRO Elbow Threaded Adaptor to M5 Male to Push-In 6 mm 9.9 kgf/cm², 990 kPa

Need to create an angled join in a confined space on your pneumatic equipment? Use one of these RS PRO threaded elbow adaptors, which have a compact, six-angle wrench design and push-in connector for easy installation in tight spaces.
The bodies of these adaptors are built from a strong polyoxymethylene (POM) plastic with a thread made from corrosion-resistant, nickel-plated brass for durability. The nickel plating also acts as an anti-contaminant, which helps to extend the products' lifetime. The M5 screw thread with O-ring seal ensures an airtight and secure connection.
These specialist adaptors are suitable for use with air only. They're part of the trusted RS PRO series and come with a 3-year warranty for peace of mind. These components can be used in range of applications, including food packaging and beverage bottling.

Features and Benefits

• Body made from POM plastic
• Thread made from brass
• Threaded-to-tube connection style
• Connector A is a male M5 connection
• Connector B is a push-in 6 mm tube connection
• Swivel-free connection
• Maximum operating pressure of 9.9 kgf/cm², 990 kPa
• Operating temperature range of 0°C to +60°C
• Elbow threaded adaptor pneumatic fitting type

RS Pro Datasheet
