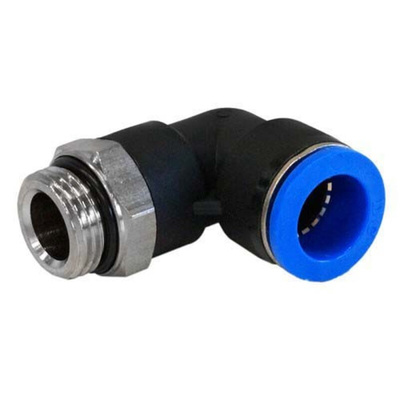

RS PRO Elbow Threaded Adaptor, R 1/4 Male to Push In 6 mm, Threaded-to-Tube Connection Style, Угловой фитинг

RS PRO Elbow Threaded Adaptor, R 1/4 Male to Push In 6 mm, 9.9 kgf/cm², 990 kPa

Looking to run your pneumatic tubing around corners or through a tight space? These threaded elbow adaptors from RS PRO are an easy-to-use solution thanks to their push-in connector.
The bodies of these adaptors are built from a strong polyoxymethylene (POM) plastic. For durability, the threads are made of nickel-plated, corrosion-resistant brass. The nickel plating also acts as an anti-contaminant, which helps to extend the lifespan of the components.
As part of the RS PRO range, this product has been tested for reliability. This type of adaptor is suitable for use with air in applications such as beverage bottling and food packaging. For peace of mind, it comes with a three-year warranty.

Features and Benefits

• Plastic body material


• Brass thread material


• Threaded-to-tube connection style


• Maximum operating pressure of 9.9 kgf/cm², 990 kPa


• Operating temperature range of 0°C to +60°C


• Elbow threaded adaptor pneumatic fitting type


• Swivel-free connection


• Connector A is a male R 1/4 threaded connection


• Connector B is a push-in 6 mm tube connection

RS Pro Datasheet
