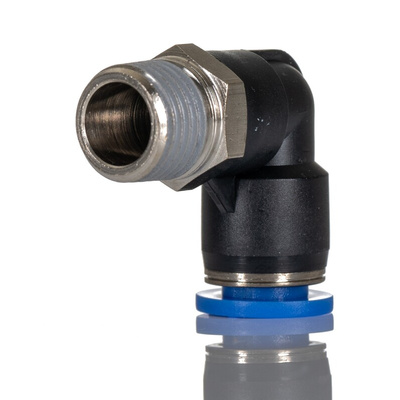

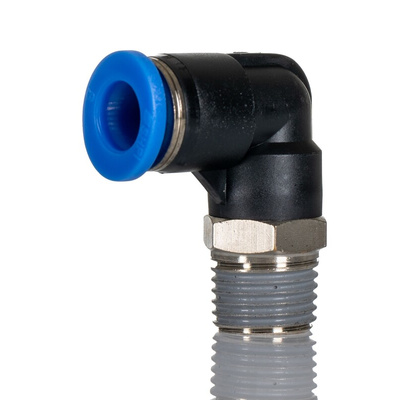

RS PRO Elbow Threaded Adaptor, R 1/4 Male to Push In 8 mm, Threaded-to-Tube Connection Style, Угловой фитинг

RS PRO Elbow Threaded Adaptor to R 1/4 Male to Push In 8 mm, 9.9 kgf/cm², 990 kPa

Need to create an angled join in a confined space on your pneumatic equipment? Choose these RS PRO threaded elbow adaptors. They have a compact, six-angle wrench design and push-in connector, making them easy to install in tight spaces.
The body of each adaptor is made of POM (polyoxymethylene) plastic, which is strong enough to hold up in demanding applications. The thread is made of nickel-plated brass for added durability and corrosion resistance. The nickel-plating also increases the lifespan of the product as it acts as an anti-contaminant. The male R 1/4 screw thread comes with an O-ring seal to ensure a secure, airtight connection.
These adaptors are only suitable for use with air. They come with a 3-year warranty and are rigorously tested for quality. Elbow adaptors such as this one are commonly used in manufacturing plants to connect pneumatic tubing for beverage bottling or food packaging.

Features and Benefits

• Plastic body material


• Brass thread material


• Threaded-to-tube connection style


• Maximum operating pressure of 9.9 kgf/cm², 990 kPa


• Operating temperature range of 0°C to +60°C


• Elbow threaded adaptor pneumatic fitting type


• Swivel-free connection


• Connector A is a male R 1/4 threaded connection


• Connector B is a push-in 8 mm tube connection
