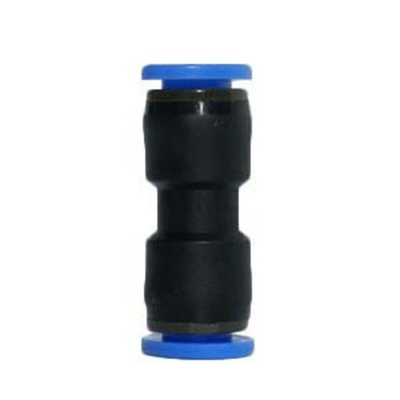

RS PRO Straight Tube-to-Tube Adaptor, Push In 4 mm to Push In 8 mm, Tube-to-Tube Connection Style, Фитинг

RS PRO Straight Tube-to-Tube Adaptor to Push In 4 mm to Push In 8 mm, 9.9 kgf/cm², 990 kPa

Need a quick way to join pneumatic tubing? Choose this straight tube-to-tube adaptor from the RS PRO range. It's easy to install or remove the tubing, as both ends have push-in connectors.
The body is made of POM (polyoxymethylene) plastic, which has good corrosion resistance and toughness. Its compact dimensions make it a good choice for use in situations where space is limited.
This product has been tested for quality and comes with a 3-year warranty for peace of mind. Straight adaptors like this one are used in workshops, garages and factories to connect tubing used in compressed air cleaning. The adaptor is intended for use with air only.

Features and Benefits

• Plastic body material


• Tube-to-tube connection style


• Maximum operating pressure of 9.9 kgf/cm², 990 kPa


• Operating temperature range of 0°C to +60°C


• Straight tube-to-tube adaptor pneumatic fitting type


• Connector A is a push-in 4 mm tube connection


• Connector B is a push-in 8 mm tube connection

RS Pro Datasheet
