RS PRO Non Return Valve, 10mm Tube Outlet, Переходник

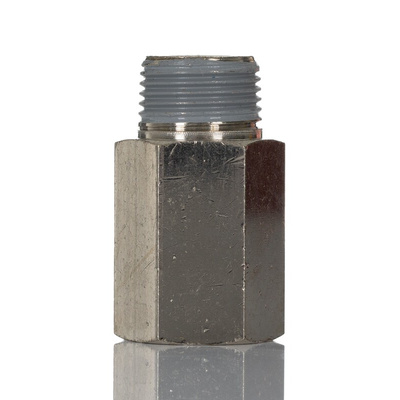

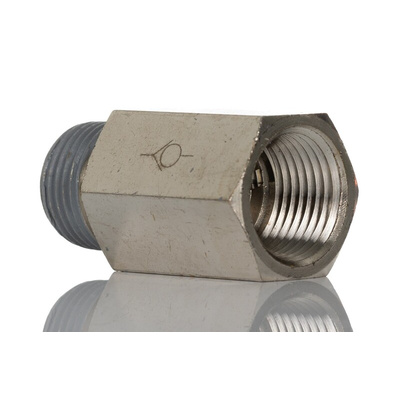

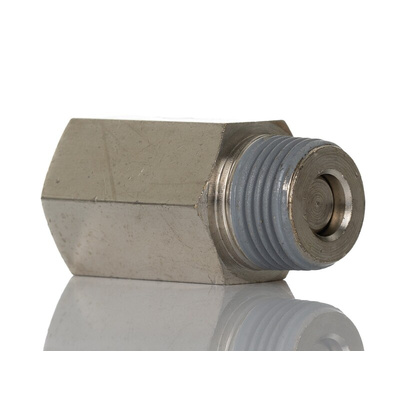

RS PRO Check Valve - Bush

Ensure directional control with these high-quality check valve bushes from the RS PRO CVPF series. These male-thread-to-female thread bushes are designed to prevent the backflow of air in the opposite direction. They are commonly used in pneumatic airflow applications and can be trusted to perform perfectly under low operational pressure conditions.

Features and Benefits

• Low-pressure applications


• Protect and maintain the vacuum line


• Input and output air pressure controlled


• Suitable for the pneumatic application under low operational pressure conditions

Specification

• Working pressure range: 0∼150PSI /0∼9.9Kgf/cm2(0∼990KPa)


• Negative pressure: -29.5in Hg/-750mmHg


• Working temperature Range: 32°F∼140°F / 0∼60°C

RS PRO Check Valve Bush Variants - Available Separately

• 1/8 in - RS stock no: 144-2703


• 1/4 in - RS stock no: 144-2704


• 3/8 in - RS stock no: 144-2705


• 1/2 in - RS stock no: 144-2706

Applications

• Pneumatic Low-pressure applications


• Air Compressor


• Air Line
