46.031.4553.1, Wieland RST16i2/3 Series Mini Connector, 3-Pole, Female, Cable Mount, 16A, IP66, IP68, IP69

Wieland RST Lighting Connector

The RST Series by Wieland has four series available, offering a complete electrical installation system to meet different requirements. All connectors are fitter-friendly and offer flexible and easy installation, to minimise incorrect connections. The RST mini is a small connector that is ideal for extremely small spaces, suitable for a variety of different uses beyond just building automation or industry.

Features and Benefits

• The RST Mini benefits from “plug & play” to ensure they are simple and functional, geared towards easy assembly, using a quick fastener for increased ease of use.


• End caps for unused slots are joined to the connector directly using a strap, protecting the device against loss.


• This RST Mini series features TWISTLOCK technology, giving the user clear feedback on the correct end position, ensuring the connector is safe.


• Only male and female connectors can be connected, giving the user the security of a clear distinction.


• The lighting connectors are available with either 2 or 3 poles

Applications and Uses

• Electrical installations


• General network applications


• Switching applications


• Multiphase systems

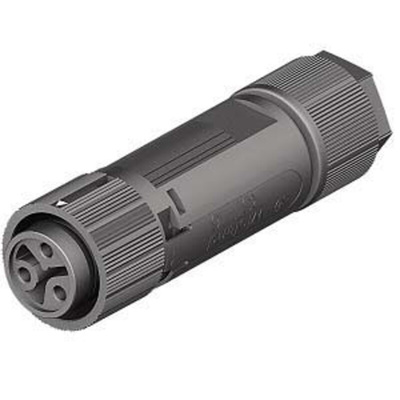

RST16i2/3 Lighting Connector

• Female connector with strain relief


• Rated current of 16A and rated voltage of 250V


• Screw connection with three poles


• For cable diameters of 5 mm - 9.5 mm


• Black polyamide housing

RST16i2/3 Datasheet
