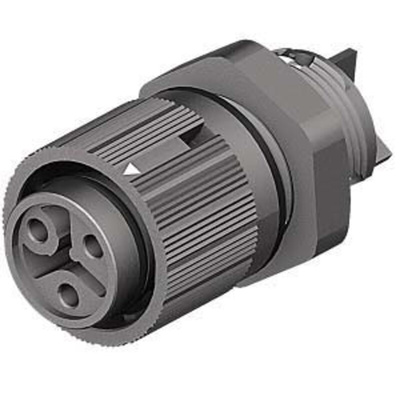

46.031.5053.1, Wieland, RST Mini Female 3 Pole 1 Way Mini Connector, Panel Mount, Rated At 16A, 400 V

Wieland RST Mini Series Connector

The Wieland RST mini-series is a female, 3-pole, one-way mini connector. It is a cable mount and comes with strain relief. It has an electric rating of 400V and 16A. It uses screw connection technology. They represent a complete stand one installation system. It is initial installations, modifications and extensions are realized quickly, while incorrect installations are consistently avoided and the plant's increased protection rating is reliably secured. The successful gesis installation philosophy is not troubled by harsh environments.

Features and Benefits

• Colour coded and mechanically coded
• Compact design
• Easy to switch from traditional cable glands to the convenient pluggable alternative
• Pollution degree 3
• Save up to 80% of installation time
• Twist lock technology
• Unused slots must be protected against moisture and dirt penetration

Applications

• Construction sites
• Functional buildings
• Outdoor lighting
• Solar systems

Certifications

• BV
• CSA
• DNV/GL
• IP66 rated
• IP68 rated
• IP69 rated
• LR
• RINA
• UL listed
• VDE
