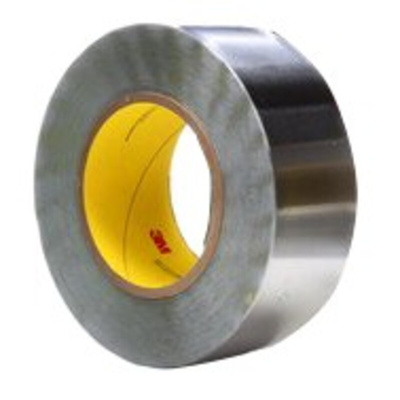

420 25MMX33M, 3M 420 Conductive Lead Tape, 25mm x 33m, Алюминиевая лента

3M Lead Tape, 4.9N/cm Adhesion Strength, 0.17mm Thickness - 420 Series - 420 25MMX33M

Looking for tape to use for electroplating masking? Try this lead foil tape from 3M. It's malleable, so you can shape it into detailed patterns to match the needs of your manufacturing process. For longevity in harsh industrial environments, it resists UV light, moisture and flames, as well as chemicals. The rubber adhesive grabs firmly to a surface for a long-lasting hold. There's no need to worry about sticky residue as this tape removes cleanly from most substrates.

Features and Benefits

• Lead foil backing can be burnished to provide a continued electrical path
• Suitable for use both indoors and outdoors
• Wide temperature use range between -54°C and +106°C for compatibility with demanding conditions
• Shelf-life of 18 months, so suitable for storage

Applications

• Chemical milling
• Paint stripping tasks
• Adding weight to equipment parts

Our 3M™ Lead Foil Tape 420 is an electrically and thermally conductive tape. This highly conformable tape resists flame, moisture, weather, UV degradation, chemicals and radiation.

Is this tape thermally conductive?

Electrically and thermally conductive tape for the electroplating and anodising processes.

Yes, this tape is thermally conductive, so helps to reduce the build-up of hotspots.

• Conformable tape resists flame, moisture, weather, UV degradation, and many chemicals used in electroplating and anodizing processes
• The rubber-based adhesive bonds well a variety of surface, including most metals
• Performs over a wide variety of temperatures
• Liner allows tape to be die-cut into specific shapes for assembly and manufacturing processes

Why choose 3M?

3M are a trusted name in tapes and adhesives. Whether for industrial or even domestic applications, 3M has a tape to suit your needs. From automotive masking to office supplies, 3M tapes are relied on by millions to get the job done. RS supplies a wide range of quality 3M tapes to suit the needs of the most discerning customer.

A Rubber Adhesive backing. This 3M lead foil tape is coated in a rubber adhesive, with an easy release film liner. The rubber adhesive secures to a variety of difficult subjects whilst maintaining a strong and reliable bond.

A Rubber Adhesive backing. This 3M lead foil tape is coated in a rubber adhesive, with an easy release film liner. The rubber adhesive secures to a variety of difficult subjects whilst maintaining a strong and reliable bond.

Similar 3M Tapes in this Range

Longevity of foil tape. This tape is ideally used for electroplating or as a radiation barrier in applications where it needs to be conductive both thermally and electrically. Rubber adhesive provides a strong, resistant from flames, UV light, chemicals and radiation.
