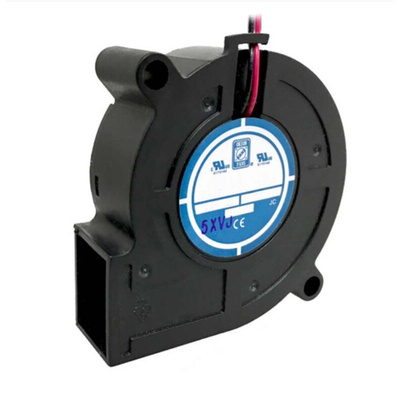

RS PRO Centrifugal Fan, 12 V ac, 2.4cfm, DC Operation

RS PRO Centrifugal Fan, 2.4 CFM, 12 V DC

Need a blower you can install in your appliances and HVAC (heating, ventilation and air conditioning) systems? This RS PRO centrifugal fan effectively draws air in and blows out air streams at increased volumes and speeds.
You can easily handle and install this compact and lightweight fan as it weighs only 27 g. The polybutylene terephthalate (PBT) housing is chemical resistant and won't damage when exposed to chemical splashes.
The RoHS (Restriction of Hazardous Substances) certification guarantees the item contains no more than trace amounts of any restricted materials that can harm your health. You can use it in air conditioners and boilers in domestic and commercial environments.

Features and Benefits

• DC operation
• Airflow of 2.4 CFM (cubic feet per minute)
• Ball-bearing type
• Blower type
• Brushless commutation type
• Forward direction of curve
• Fan speed of 3500 rpm (rotations per minute)
• Ingress Protection (IP) rating of IP55
• Maximum current of 45 mA
• Noise level of 32 dB(A)
• Tachometer sensor output type
• Static pressure of 0.2 in/H2O
• Supply voltage of 12 V DC
• Lead wire termination type
• Depth of 15 mm
• Width of 51.11 mm
• Mounting hole diameter of 3.35 mm
• Vertical hole spacing of 43 mm
