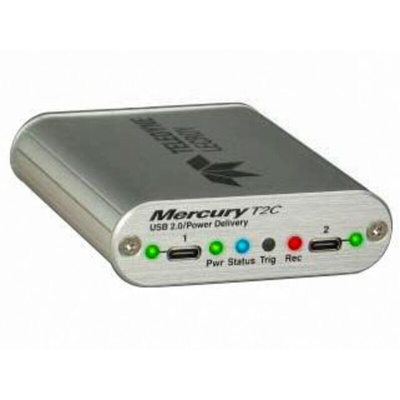

Teledyne LeCroy USB-TMA2-M02-X Protocol Analyser USB 2.0

Teledyne LeCroy Protocol Analyser

The Teledyne LeCroy protocol analyser is a small and affordable hardware-based USB 2.0 device that combines the de facto standard CATC Trace display with powerful analysis features. This analyser graphically decodes power delivery 3.0 protocol, in addition to USB 2.0 protocol traffic where all protocol layers can be expanded to show the underlying transactions and packets. It provides many of the same lab quality protocol analysis capabilities offered in Teledyne LeCroy's top-of-the-line USB analysers with the help of comprehensive triggering. The tooltips help explain protocol events making it easier for non-experts to identify errors.

Features and Benefits

Supports USB power delivery 2.0 and 3.0
Portable and affordable
Recording memory is 256/512MB
High impedance probe
Advanced triggering
Extensive decodes
Hardware filtering
Event reporting
SBU capture option

Applications

SCADA engineering and system integration
Industrial automation
Network engineering
Field services

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

T2C and T2P Series Datasheet
