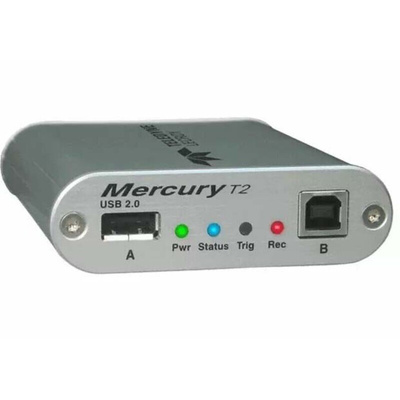

Teledyne LeCroy USB-TMS2-M01-X Protocol Analyser USB 2.0

Teledyne LeCroy Protocol Analyser

The Teledyne LeCroy protocol analyser is a small and affordable hardware-based USB 2.0 device that combines the de facto standard CATC Trace display with powerful analysis features. This pocket-sized analyser is bus-powered and is controlled using any Windows PC. This analyser provides many of the same lab quality protocol analysis capabilities offered in Teledyne LeCroy's top-of-the-line USB analysers with the help of comprehensive triggering.

Features and Benefits

Supports USB 2.0
Recording memory of 256 MB
High impedance probe
Advanced triggering feature isolates important traffic, specific errors or data patterns
Standard trigger events are packet identifier, token pattern, frame pattern, device request, data pattern and bus
Extensive decodes mass storage, Bluetooth HCI, hub, PTP/Still image, printer, Human interface devices (HID) and audio
Hardware filtering
Event reporting

Applications

SCADA engineering and system integration
Industrial automation
Network engineering
Service and maintenance
Field services

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
