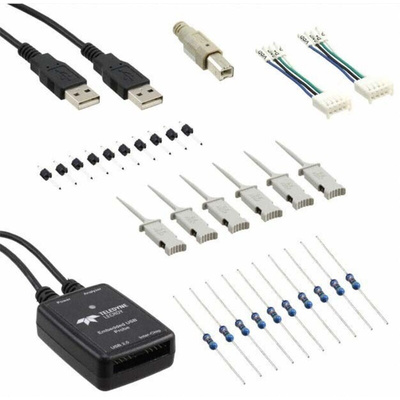

USB-FE02-V01-X, Teledyne LeCroy LeCroy Test Probe USB Probe

LeCroy Embedded USB Probe For USB 2.0

Interchip USB (IC-USB ) is a standard methodology for using USB in chip to chip communications. IC-USB allows vendors to leverage on-board embedded USB host logic which enables faster chip to chip communications using USB physical links within a multi- chip PCB assembly.
Teledyne LeCroys embedded probe supports tapping these chip to chip links using low or full speed interchip signals at all defined IC -USB voltages. The probe can also be used to tap USB 2.0 links at standard 3.3 volt signal levels

Features and Benefits

• CATC Trace Analysis Software - Faster interpretation and debug of USB traffic


• Portable and Convenient - Bus Powered analyzer works with any Windows-based PC


• AutoDetect USB 2.0 Speeds - Automatically detects low, full, and high speed connections


• OTG (On-The-Go) Support - Record and analyze HNP & SRP, including the capture of VBus and Data line pulses


• Advanced Triggering - Isolates important traffic, specific errors or data patterns


• Extensive Decodes - Mass Storage, Bluetooth HCI, Hub, PTP/Still Image, Printer, Human Interface Devices (HID), Audio and Communication

Applications:

Software development in new product designs

USB-FE02-V01-X Datasheet
