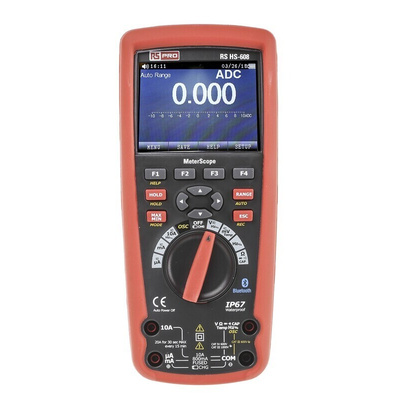

RS PRO HS608 MeterScope Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max - RS Calibrated, Мультиметр

RS Pro Digital MeterScope

High performance Digital MeterScope will provide much more safe measurements with double modled housing and IP67 functions.The meterbox-iMM software can support our DMM product transferring the measured data to the customers' smartphone for data editing and sharing. Bluetooth PC interface for easy data transfer & accuracy calibration

Features and Benefits

Large 50,000 count 320 x 240 TFT colour LCD display
20MHz/50MS/s bandwidth/Real time sample rate
Logging function with Trend Capture for easy review of logged data
100kHz bandwidth (voltage/current)
AC, AC+DC true-RMS measurements
0.025% DCV accuracy with Fully PC Calibration
Saves measurements, records events and trends
20 Times/sec. A/D convert fast sampling time
Peak capture (records transients as fast as 250μs)
Min/Max/Average with Time stamp (records signal fluctuations)
Moto winding and low ohm (50Ω) measurement range
Low pass filter
IP Rating 67 & CATIII 1000V/CATIV 600V
Bluetooth interface to smartphone / PC
Meterbox iMM & cloud service

Professional True RMS Industrial Digital MeterScope with oscilloscope functions and TFT colour LCD display, providing fast A/D converting sampling time, high accuracy, built-in datalogging and Trend Capture features. Meterbox iMM software & cloud server support to transfer the measured data to the customer's smartphone for edit and storage. Safety Conformance, EN61010-1 CAT IV 600V, CAT III 1000V, 1000V input protection on all ranges 10A/1000V & 0.8A/1000V fuses protection on current ranges

HS608 MeterScope Datasheet

Contains SVHC - 1,3-propanesultone - CAS No. 1120-71-4

UN38.3 Lithium Battery Test Summary
