1891526-1, TE Connectivity Extraction Tool, Dynamic 1000 Series, Crimp Contact, Contact size 2mm, Инструмент для извлечения

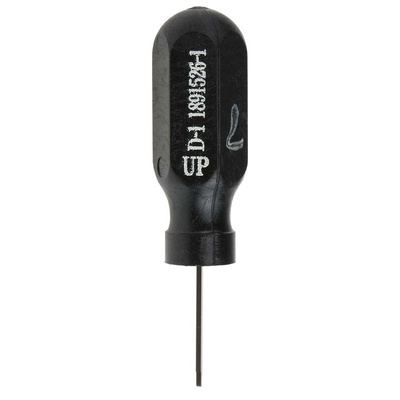

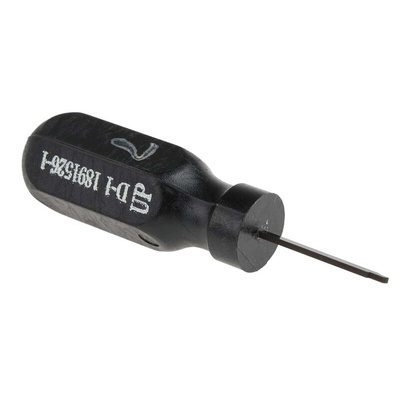

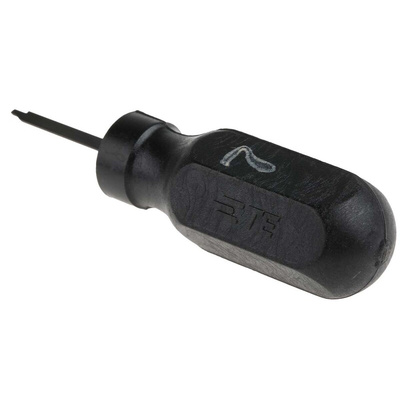

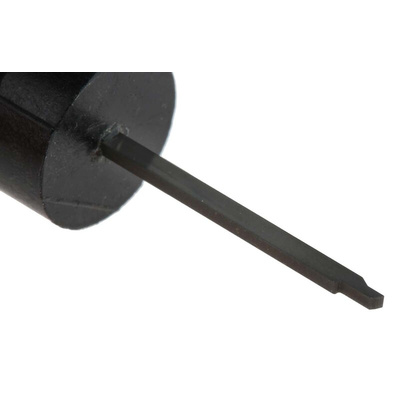

TE Extraction Tool for Dynamic 1000 Series

This TE Connectivity extraction tool is specifically to be used in conjunction with TE’s dynamic 1000 series with a contact size of 2mm. TE extraction tools are essential in the removal of contact in the connector construction field. Each tool is specifically designed to be used on unique product series and will present the easiest and most effective way to remove contact from a connector.

Features
• Insertion & Extraction Tool Type: Contact Extraction.
• Insertion & Extraction Tool Application: Contact-to-Housing.
• Wiring type tool for pulling the contact from the housing without damaging the terminal or housing.
• Yields quality product and greater operational efficiency.
• Dimensions: 75mm x 25mm x 1.1mm.
• Compatible with Dynamic 1000 Series.

Please note
* Take care not to insert into the Contact Section. If you have inserted by error, replace the damaged contact with a new one before proceeding.
