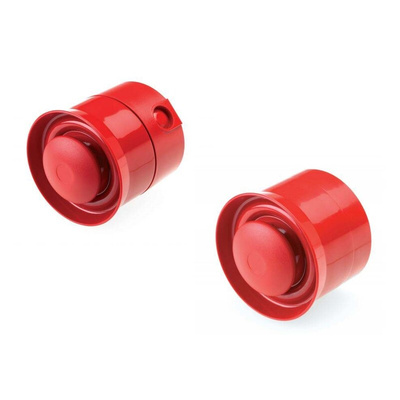

RS PRO Conduit Box, Panel Mount, Surface Mount Electronic Sounder, 10 → 30 V dc, IP54, IP65, DC, 8-Tone

RS PRO Red 8 Tone Electronic Sounder, 10 to 30 V DC, IP54, IP65

Looking for an alarm sounder for your commercial or industrial buildings? Choose this RS PRO electronic sounder to connect to your alarm circuit and mount on a panel or surface.
The housing of this product is made from acrylonitrile butadiene styrene (ABS) plastic to ensure it has great durability and impact and abrasion resistance. It has an Ingress Protection (IP) rating of IP65, which means it's protected from dust ingress and low-pressure water jets from any direction.
The alarm sounder is handled and packed in compliance with American (ANSI/ESD S20.20:2014) and European (BS EN 61340-5-1:2007) electrostatic discharge (ESD) certifications to ensure the risk of discharge is reduced. It also conforms to Restriction of Hazardous Substances (RoHS) criteria so it includes only minimal amounts of any harmful substances.

Features and Benefits

• Sounder application type
• Base length of 81 mm
• Base width of 93 (diameter) mm
• Diameter of 101 mm
• DC current type
• Red housing colour
• ABS housing material
• IP (Ingress Protection) rating of IP65
• Maximum decibel of 112 dB
• Minimum decibel of 95 dB
• Maximum temperature of +70°C
• Minimum temperature of -40°C
• Eight tones
• Conduit box or surface mounting
• Continuously rated
• Dustproof
• Suitable for panels
• Weatherproof
• CE (Conformité Européenne) standards met
• Supply voltage of 10 to 30 V DC
• Alarm tone type

S00612

Moflash Signalling Product Range
