RS PRO Red/Green/Amber LED Beacon, 3 Lights, 24 V dc, Surface Mount, Маячок

RS PRO Modular Beacon

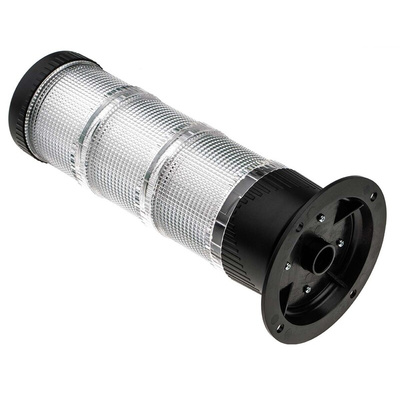

The RS PRO signal tower LED beacon is ideally suited for status indication in light commercial and industrial signalling applications where a local signal is required. This beacon is of static mode type with three stacks (amber, green, red). The signal towers have been designed predominantly to offer a cost-effective solution against more traditional incandescent types of lamps, whether through new plant and machinery installations or existing facility upgrades. The design is modular and is easily assembled. It has colour modules which supply quick fix termination that simply pushes into the male terminal in the module below to make a connection. The range also comes with an audible module option that can be fitted anywhere in the modular stack.

Features and Benefits

The supply voltage is 24VDC
Continuously rated
LED long life
Sounder unit output is 80dB to 120dB
Low current consumption
Suitable for surface mounting
360° light output around the vertical axis
Dustproof and weatherproof
UV stable polycarbonate lens
UV stable ABS plastic base
Surface mounting
Height is 56mm (Base) and base diameter is 100mm
Operating temperature ranging between -25°C and 55°C

Applications

Refuge trucks
Utility vehicles
Agriculture
Plant and contracting,
Fleet vehicles
Industrial
Commercial buildings

Certifications

IP65 rated
IP65 rated
CE certified
