IS-B-02-01, Moflash IS-B Series Amber Flashing Beacon, 24 V dc, Wall Mount, LED Bulb, IP66

Moflash Intrinsically Safe Beacon – IS-B Series

Professional range of intrinsically safe LED beacons from the IS-B series. The beacons incorporate a dip switch that allows you to change from 1 Hz flash rate to a static signal. Designed for use in potentially explosive atmospheres for Group I (Mining) and Group II (Above Ground) applications. Suitable for fire, security, process control and general signalling applications.

Features and Benefits

Zones 0, 1, 2, 20, 21 and 22
ATEX and IECEx approved
IP66 rated
Surface Mount
Polycarbonate housing material

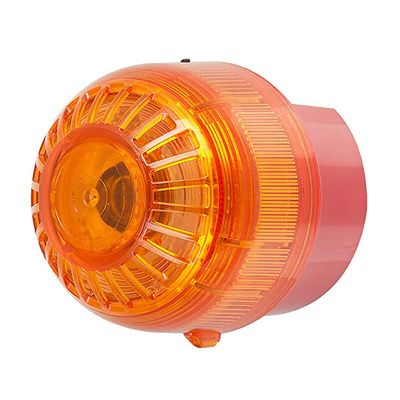

Moflash Amber Multifunction Beacon, 24V DC, 33mA - IS-B Series - IS-B-02-01

Use this robust amber beacon from Moflash for clear visual signalling in industrial areas. This warning device is illuminated by nine LEDs that give off a bright and highly visible light. Its polycarbonate (PC) housing material is flame-retardant and resistant to impact, making it suitable for use in harsh conditions. As it consumes just 33mA of current, it's an energy-efficient choice. This beacon has an ATEX certification, making it safe for use in potentially explosive environments.

Features & Benefits

• Light weight of 330g to minimise stress on mounting surfaces
• IP66 (ingress protection) rating means it's dust-tight and protected against high-pressure water jets
• Wide operating temperature range of -40°C to +55°C for use in demanding conditions
• Voltage rating of 24V DC for use in low-voltage setups

Applications

• Mining industry
• Gas plants
• Chemical processing facilities
• Marine industry

Does this beacon flash?

This beacon offers a choice between a static mode and a flashing mode with a flash rate of 60FPM (flashes per minute) for an urgent signal. To switch between the two modes, use the DIP (dual in-line package) switch.

IS-B

Hazardous Area Product Range

1445951_Instruction Sheet_en
