DRC3P48D433R, Sensata / Crydom DRC Series Solid State Contactor, 3-Pole, 500 mA, 480 V ac, Реле

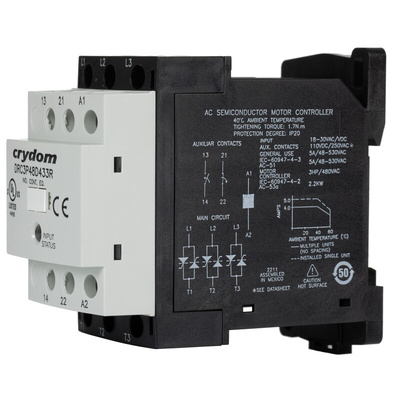

Sensata | Crydom Solid-State Contactor, Instantaneous Turn-On, DIN Rail Mounting - DRC Series - DRC3P48D433R

For rapid-fire switching of electrical loads, turn to this solid-state contactor from Sensata | Crydom. It's a reliable choice for starting and stopping three-phase motors at high speeds, thanks to its maximum switching frequency of up to 9000 cycles per hour. Integrated overvoltage protection safeguards your circuits from electrical surges. For installation in a snap, you can mount it on a DIN rail. Put this product to work in packing machinery and lighting systems.

Features & Benefits

• LED indicator for ease of status monitoring
• Solid-state design means there aren't any moving parts, reducing the risk of wear for a long service life
• Thermoplastic housing provides effective insulation for increased electrical safety
• Compact dimensions of 95.6 (L) x 45.3 (W) x 86.7mm (H) to maximise space on your DIN rail
• Safe for use in harsh environments, thanks to a wide operating temperature range between -20°C and +60°C

What's the operating voltage range of this solid-state contactor?

It has a wide operating voltage range of 48 to 530V AC, so you can count on it in low and high-voltage applications.
