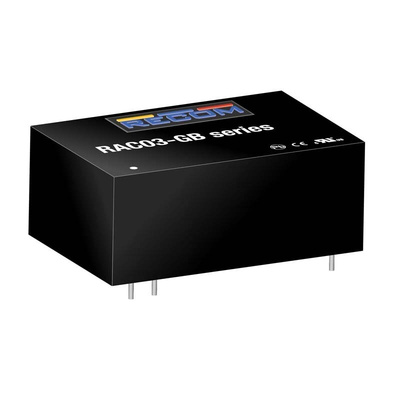

Recom Switching Power Supply, RAC03-12SGB, 12V dc, 250mA, 3W, 1 Output, 85 → 305V ac Input Voltage, Преобразователь

RECOM Switching Power Supply, 500μF Maximum Capacitive Load, 250mA Output Current - RAC03-GB Series - RAC03-12SGB

Pick up this switching power supply from RECOM to step down your power supply to a steady direct current. It's a versatile option that changes 305V AC or 430V DC into 12V DC to energise your equipment. The product's small size of 37 (L) x 24 (W) x 15mm (D) makes it a neat option for a crowded PCB. Thanks to a high mean time between failures of 100,000 hours, you can trust it to get the job done in the long term.

Features & Benefits

• Delivers reliable performance in challenging temperatures between -40°C and +70°C
• Encapsulated package offers protection against moisture and contamination in challenging conditions
• 78% efficiency indicates low energy waste and minimal heat production

Applications

• Industrial automation
• Factory power supplies
• Food and beverage production

How much does this SPS weigh?

This power supply weighs in at just 20g, so your setup won't be loaded down.

What size is this device?

The assembly has compact dimensions of 37 (L) x 24 (W) x 15mm (D), so it's an ideal choice when space on your PCB is limited.
