REM1-0505S, Recom REM1 DC-DC Converter, 5V dc/ 200mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C, Преобразователь

RECOM DC-DC Converter, Medical Grade, 5kV DC Isolation Voltage - REM1 Series - REM1-0505S

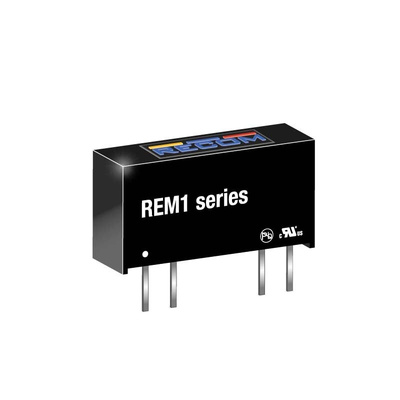

Changing up your current is a doddle with this DC-DC converter from RECOM. It takes a fluctuating 4.5 to 5.5V DC current and smooths out the kinks to give you a stable 5V DC output. This keeps your downstream kit running without a hiccup. Measuring just 19.6 (L) x 6 (W) x 10.2 (D) mm, the SIP-7 package is super-compact and fits into tight spaces. As the 1W converter provides 5.2kVDC of isolation for up to one minute and is reinforced with triple-insulated wires, it's a safe option that's suitable for use in medical settings.

Features & Benefits

• Through-hole mounting gives extra strength and security
• Wide operating temperature range between -40°C and +90°C to suit harsh industrial conditions
• Operates at 80% efficiency, so it wastes little energy as heat

Applications

• Manufacturing equipment
• Industrial power supplies
• Consumer electronics

Why would I need a converter if the input and output voltage are the same?

To keep your supply consistent, you can use isolated DC-DC converters to break up ground loops, remove noise or steady a fluctuating voltage to an exact value.

How many outputs does this converter have?

This device has just one output, so it's a straightforward option.
