K2744WHI, MK Electric White 2 Gang Plug Socket, 2 Poles, 2A, Type G - British, USB, Indoor Use

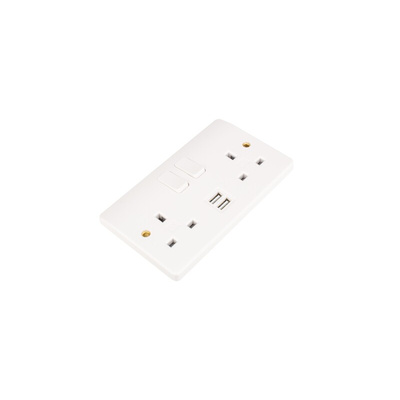

MK Electric Plug Socket

The MK Electric plug socket is designed to provide optimal and efficient USB charging via two 5V outlets. The dual USB charging outlets offer end users with easy access to power for charging a variety of devices such as smartphones, tablets and cameras whilst offering ease of installation. It has a current rating of 2A and 13A, a voltage rating of 240V and is white.
Integrated USB features USB 2.0 and 3.0 compatible dynamic device recognition ensuring that USB outlets provide optimum charging compatibility across a wide range of devices. It can charge a device at up to a full 2A, differing manufacturer’s devices can be charged simultaneously via the two USB outlets. When the total charging current exceeds the rated level of 2A, then the device will enter a current limiting safety mode, to maintain a steady a charge to electronically protect against an overload or short circuit on either USB outlet.

Features and Benefits

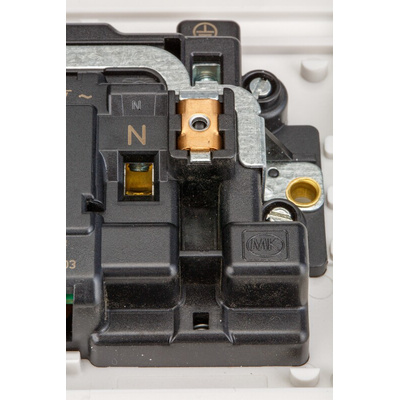

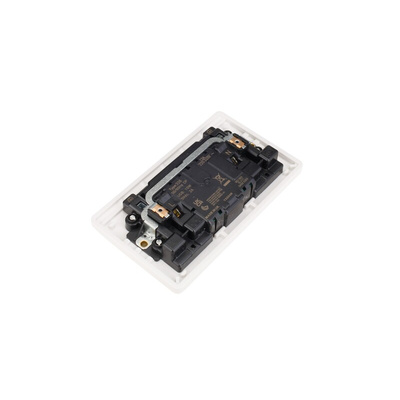

Printed terminal markings on grey rear mouldings for clearer identification
Fully backed out terminal screws
Top access angled terminals making wiring easier and quicker
Totally safe 3 pin operated safety shutter
Double pole switching as standard
3mm minimum switch contact gap
Additional electrical safety from neutral 'make first' and 'break last' feature
SELV isolation between mains and USB outlets for safety
Overall height is 85.6mm
Overall width is 146mm
Overall depth is 29.8mm
Earth terminal
Number of poles are 2
Number of modules are 2

Applications

Commercial
Light Industrial
Residential

Certifications

IP2XD rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Logic Plus series
