RS PRO IDM72 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max, Комплект

RS PRO IDM72 Multimeter and Test Lead Kit

RS PRO IDM73 Multimeter (123-3242)

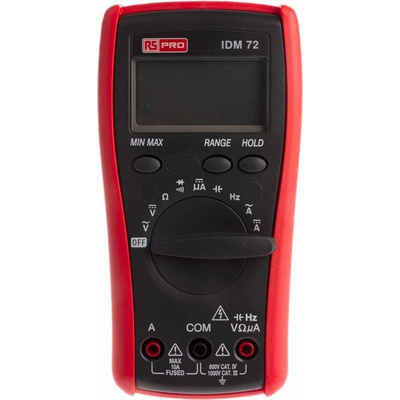

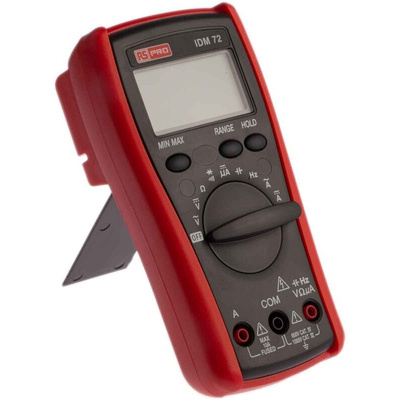

Designed as a compact, rugged and high performing digital multimeter. This handheld device can measure capacitance, voltage, electrical current and resistance with diode and continuity check. This meter has a large LCD display where the measurement readouts can be viewed easily. The highest measuring category allows measurements direct at the source of the low voltage installation. Features optical interface for transmitting measuring results to PCs.

RS PRO have a great range of meters that are RS approved meaning that they are great value for money and high quality you can rely on.

Features and Benefits:

• Handy and compact housing
• Large-scale display
• 6000 display count
• DCA μA
• Data Hold
• Min / Max function
• Frequency Counter
• Capacitance Measurement
• Auto Power Off
• Shock resistant (1 m drop)
• Protective Holster with a tilt stand and lead storage
• Large-scale display
• True RMS reading on AC mode
• DCA μA, A
• ACA A (True RMS)
• Optional RS-232 interface and software

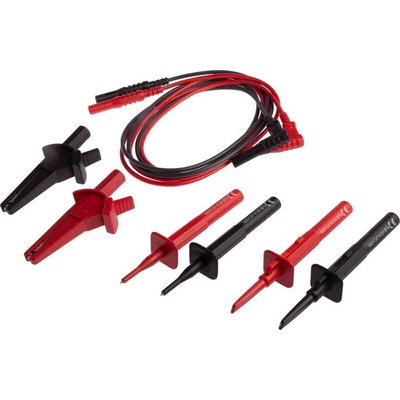

RS PRO 1000V Test Lead Set (125-3735)

A high-quality multimeter test leads set which provides test leads and accessories that have been designed to comply with IEC1010 Cat III 1000 V safety standard. Suitable for use with multimeters and other test equipment that is also rated up to IEC1010 CAT III 1000 V. Test leads for multimeters are used to test voltage, current, capacitance and other types of testing.

Included with the leads are crocodile clips (also known as alligator clips) which are extremely useful as the sharp teeth and spring design meaning that they can clip onto anything to make quick and easy test connections. They allow you to test circuits without crossing wires or causing shorts.

Features and Benefits:

• Lead length is 1.2m – double insulated silicone with multi-stranded copper conductor
• Current rating 15A

Included in this kit:

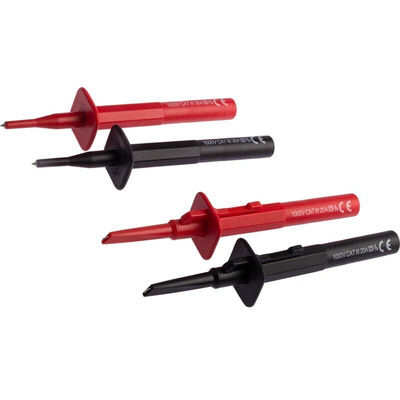

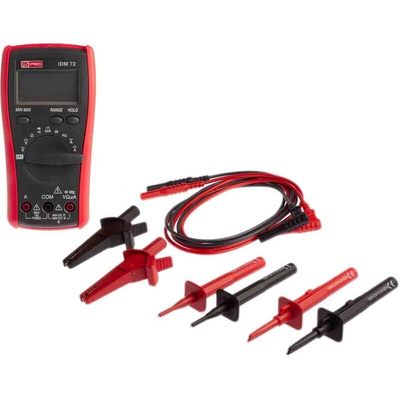

1 RS PRO IDM72 digital multimeter, 1 pair of 1.2 m silicone rubber leads terminated with one 4 mm shrouded right angle plug and one 4 mm shrouded straight plug. 1 pair of plug-in multimeter probes with 2.0 mm metal tips, 1 pair of plug-in spring loaded grabber hooks and 1 pair of plug-in crocodile clips.

Test Lead Set, 1000 V

Instruction Manual
